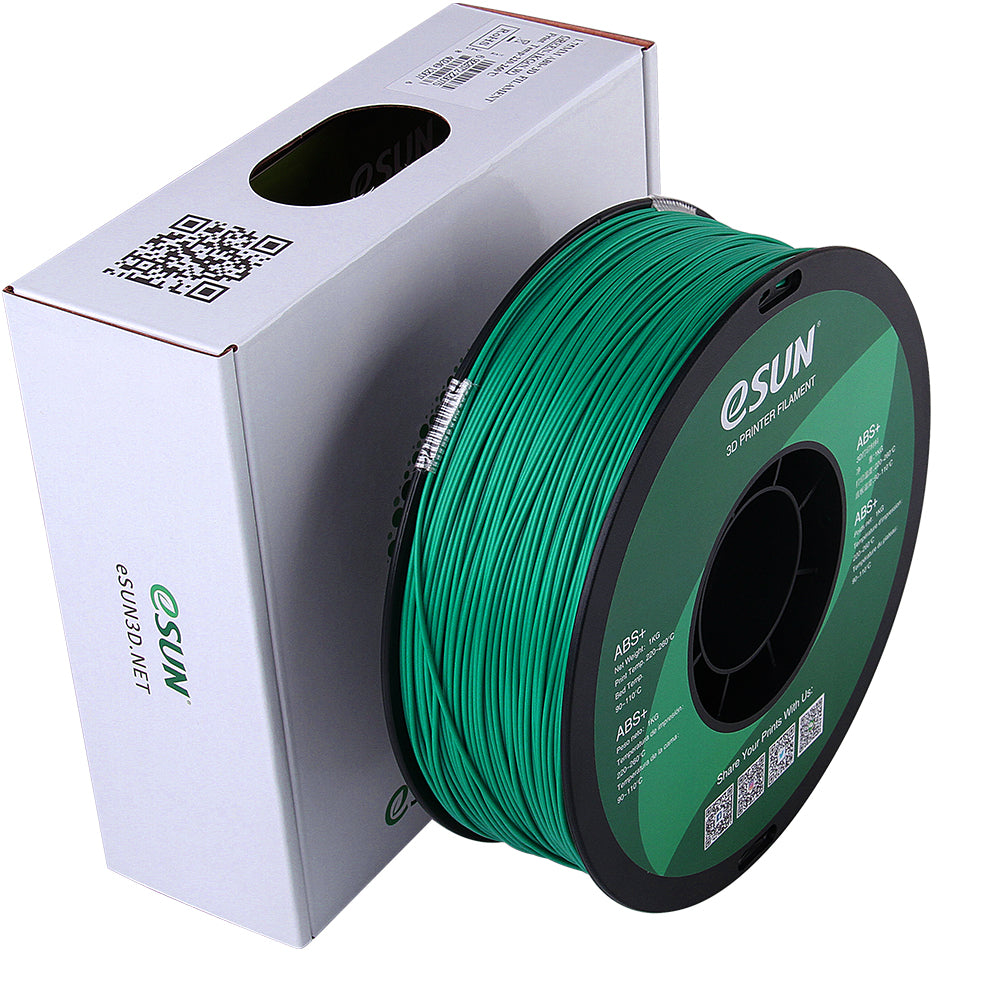

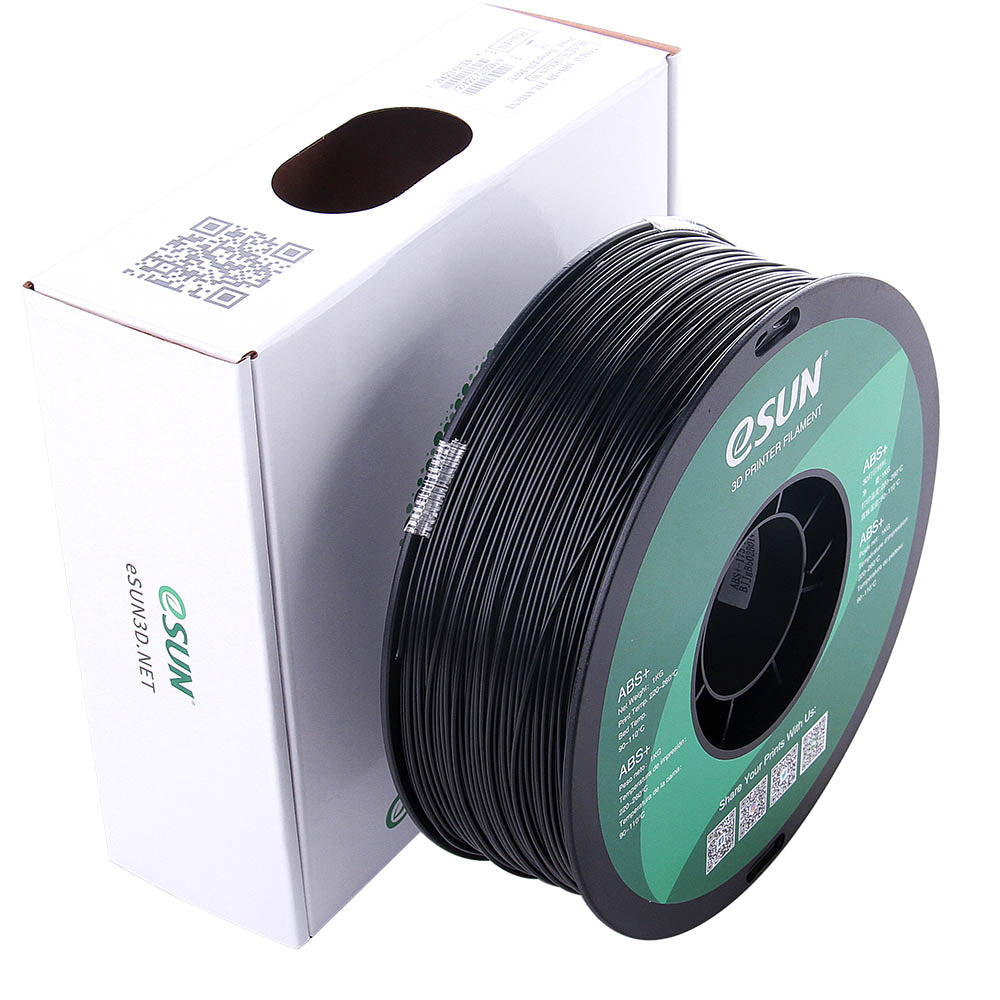

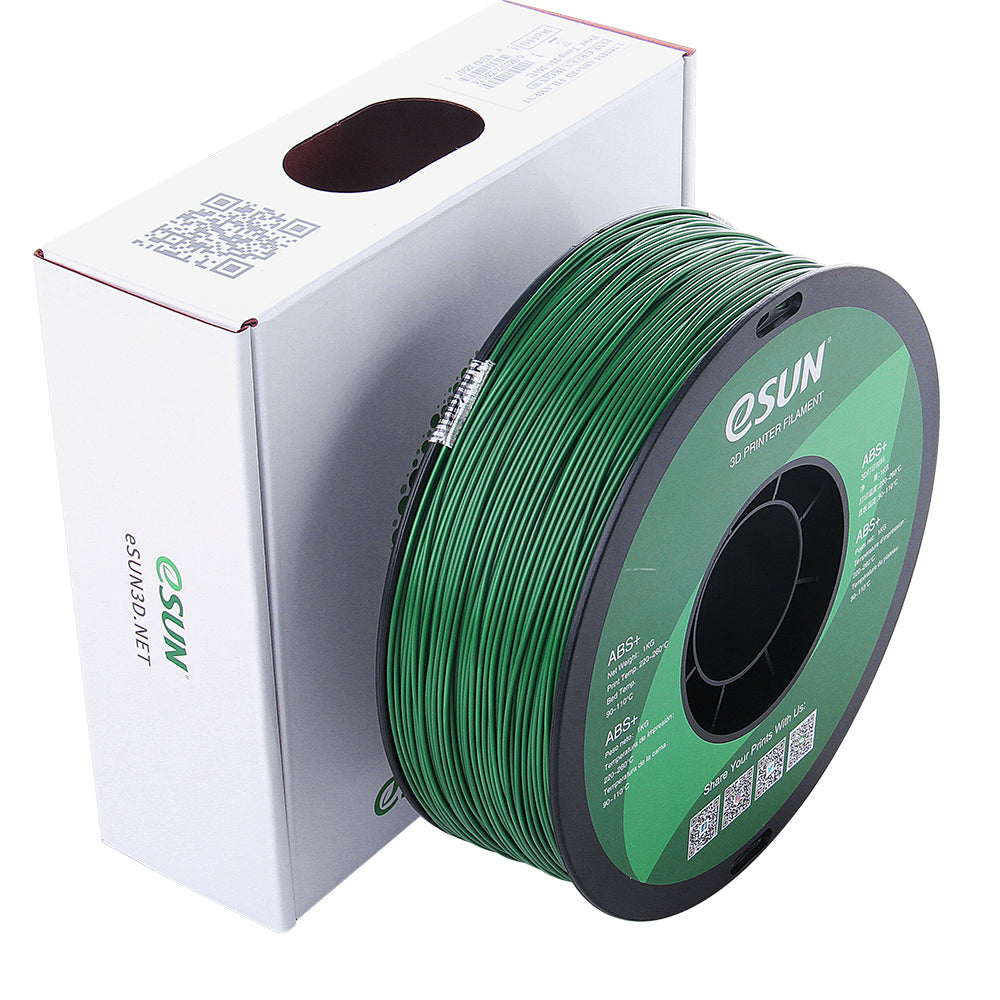

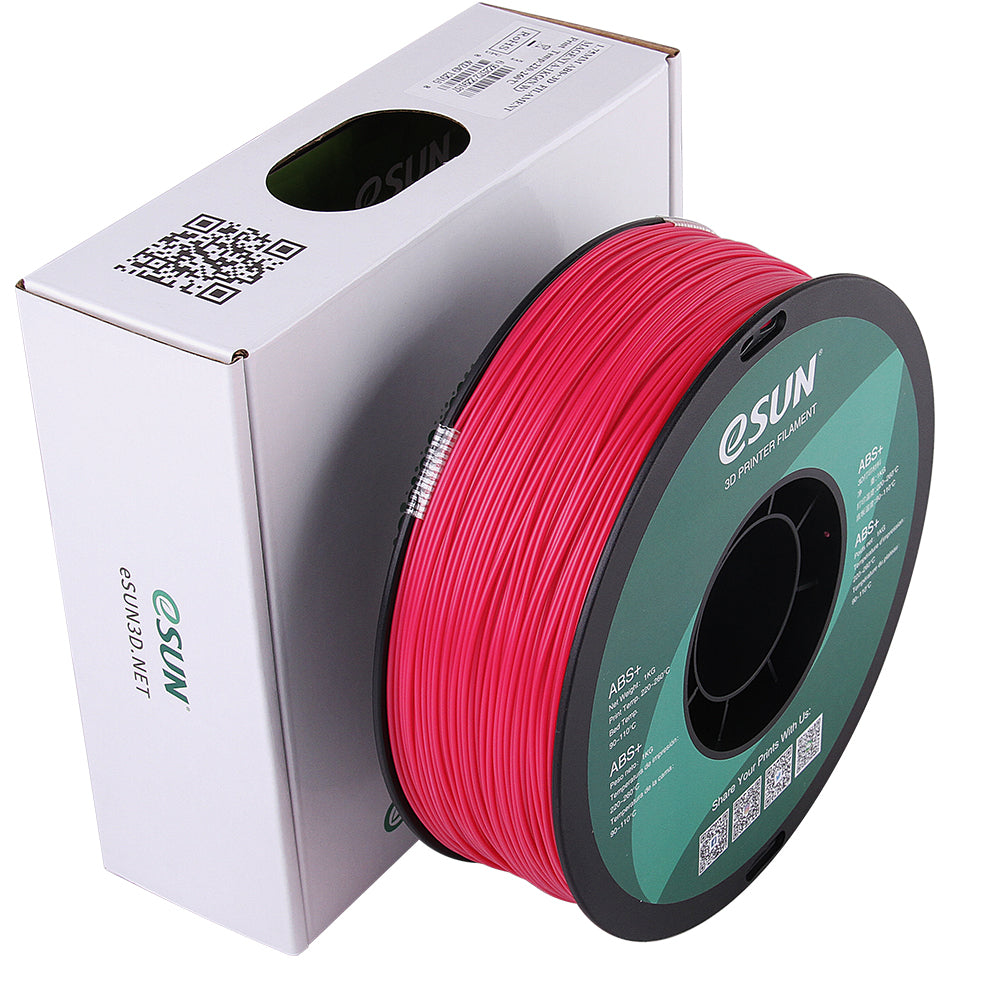

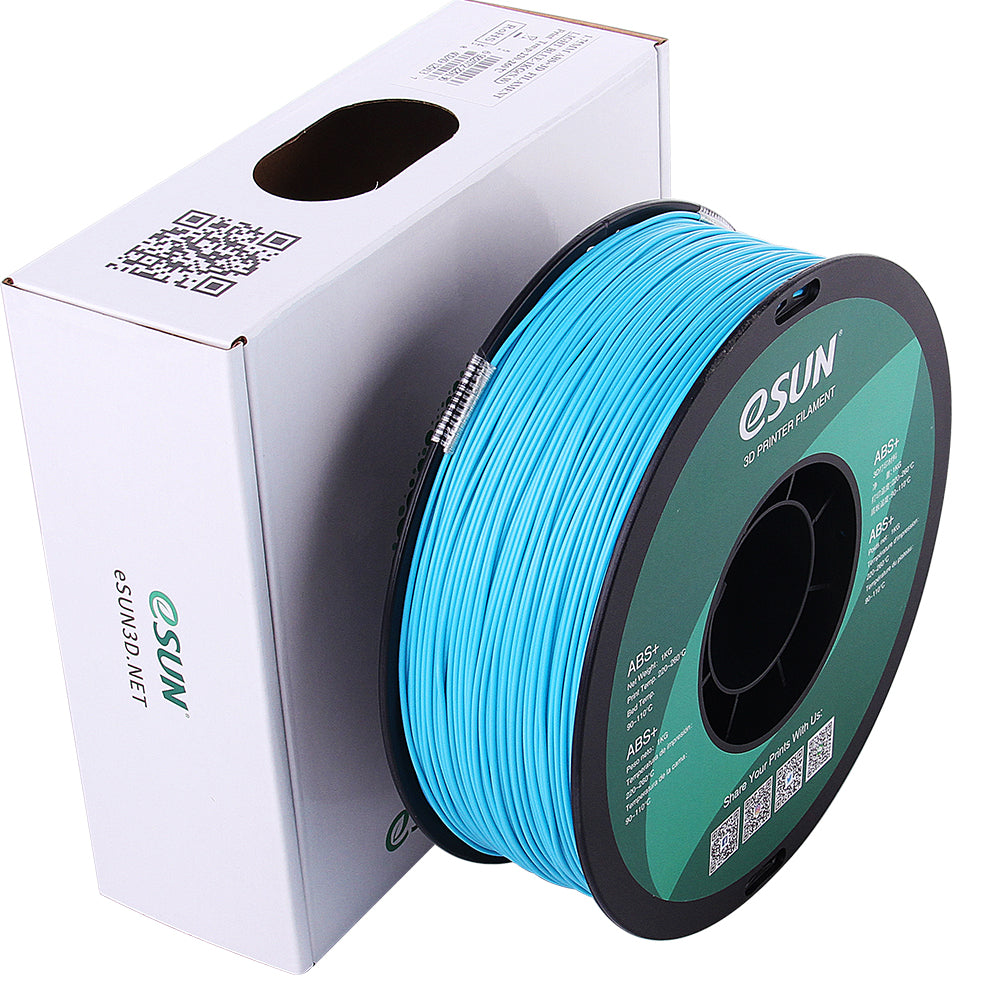

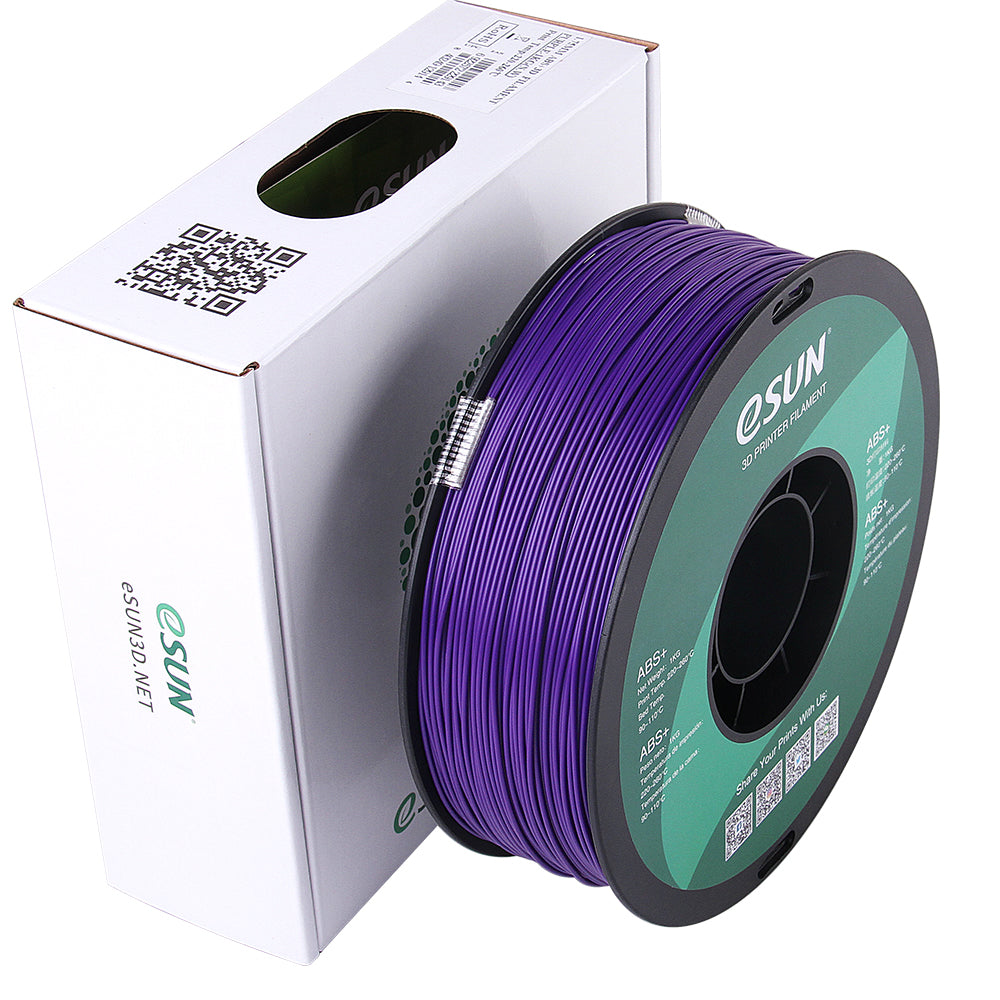

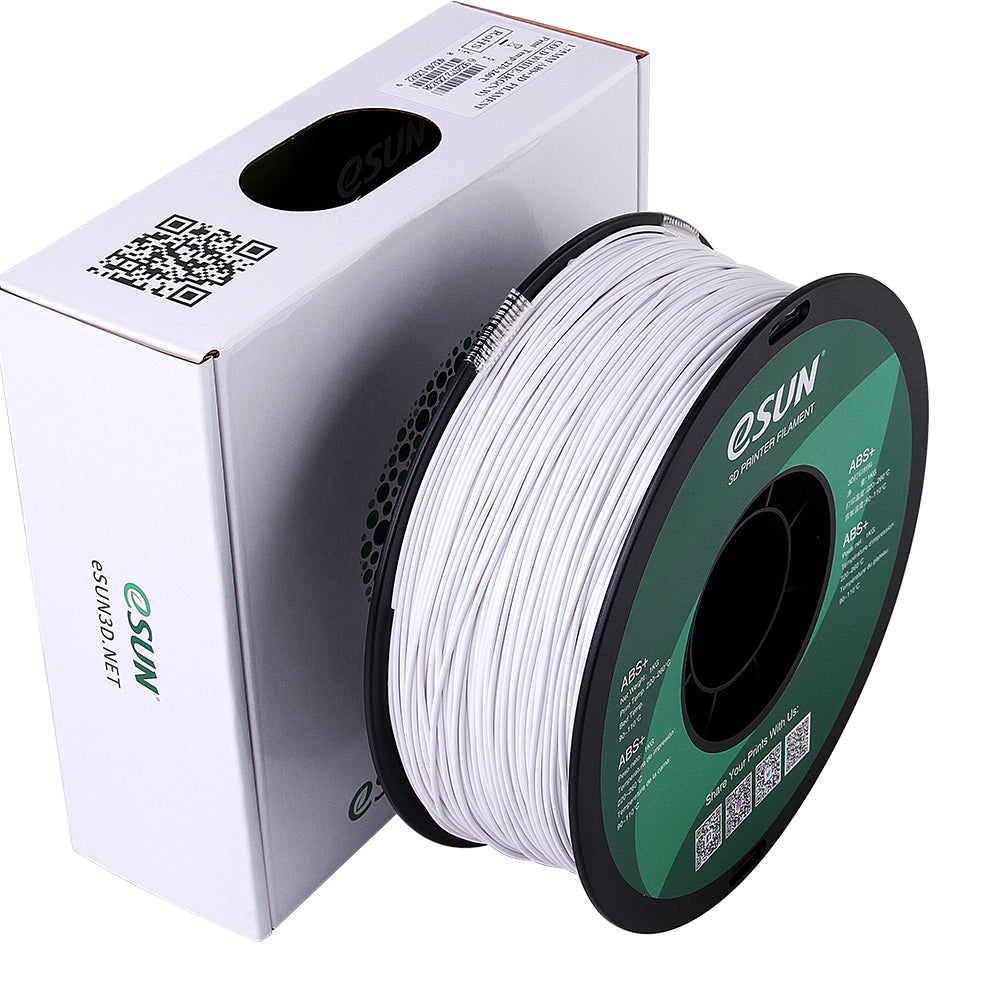

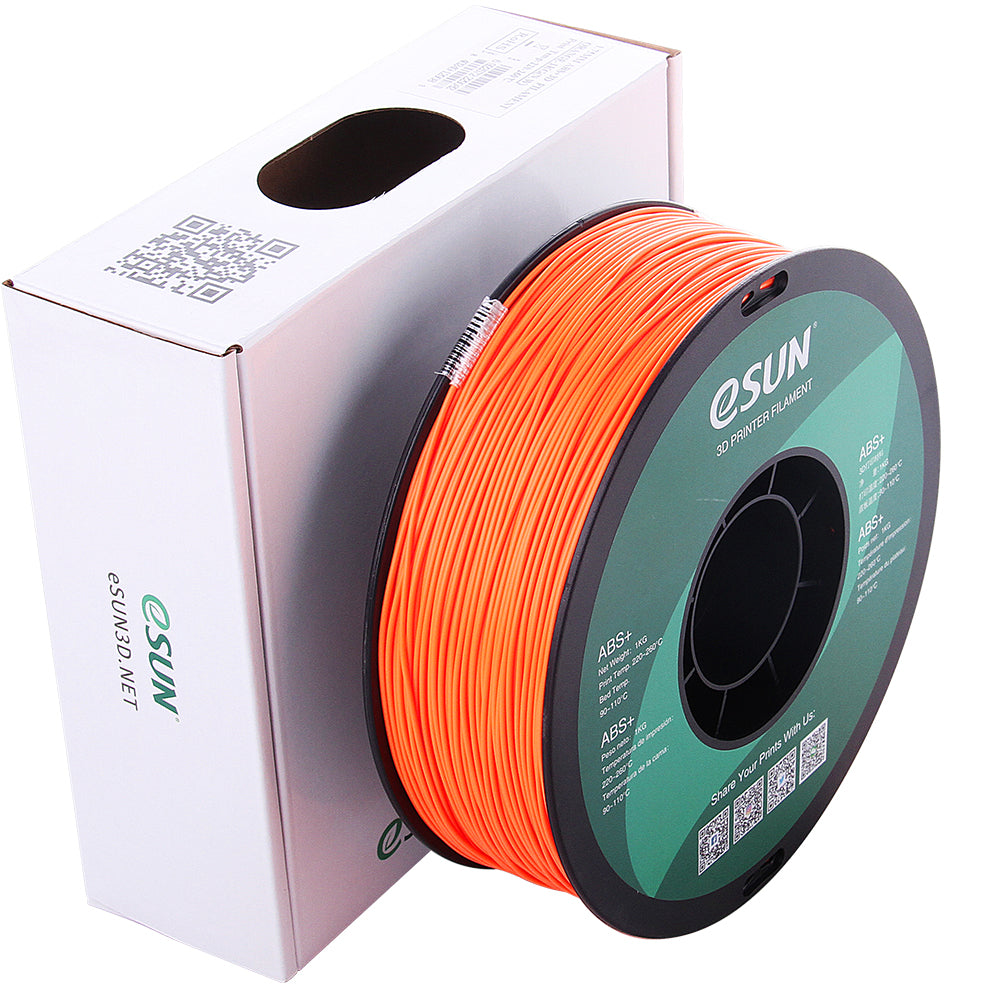

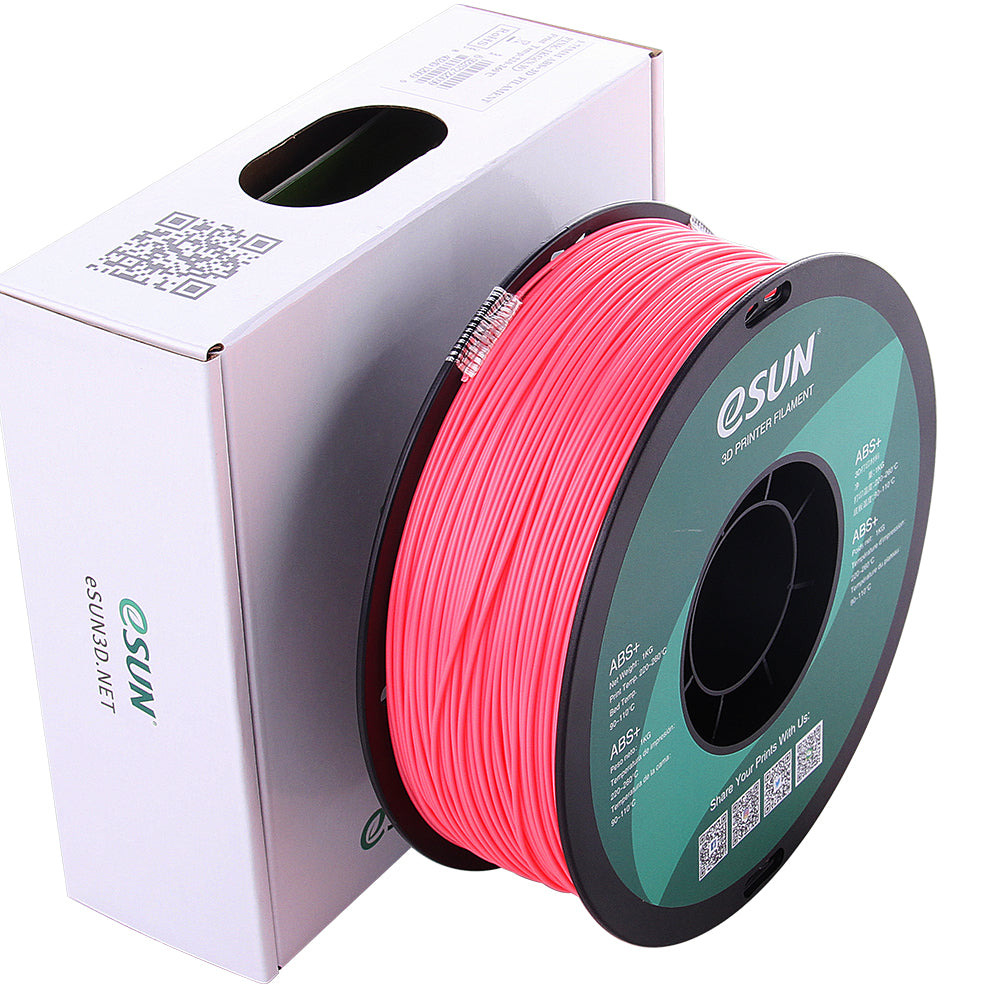

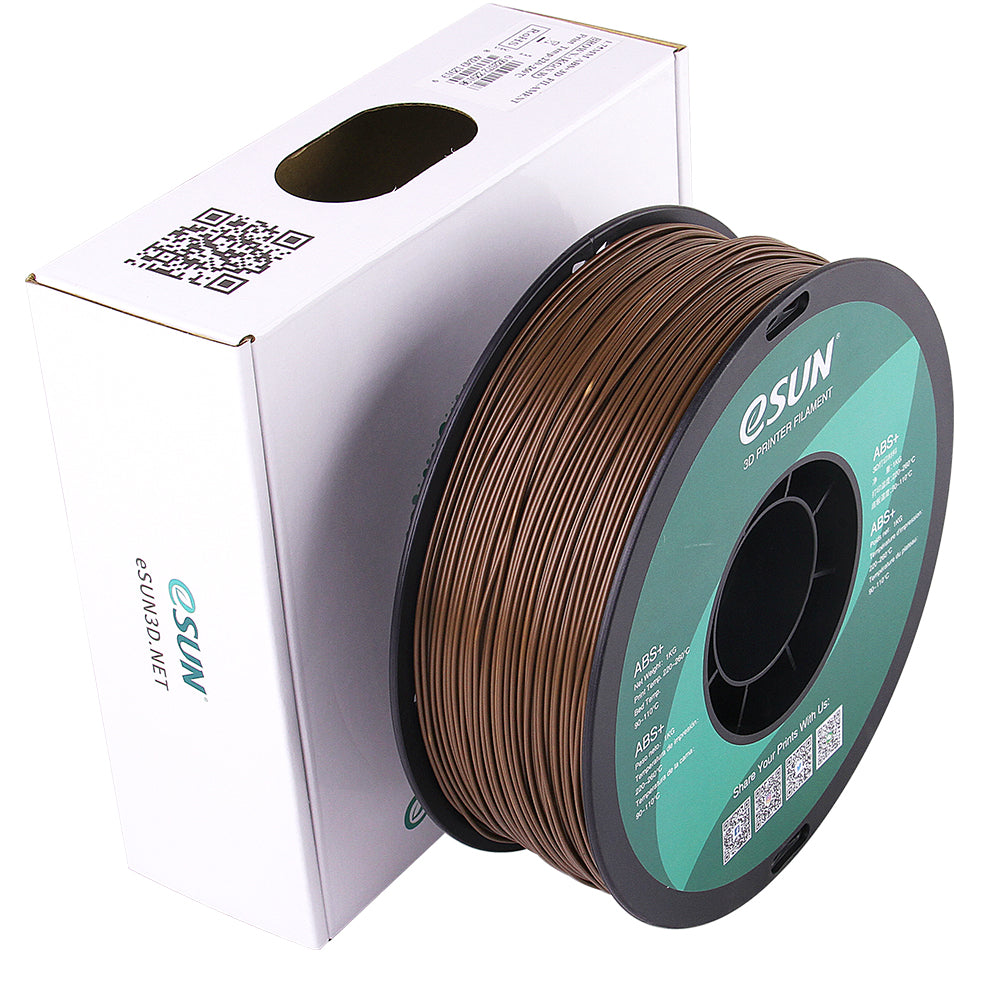

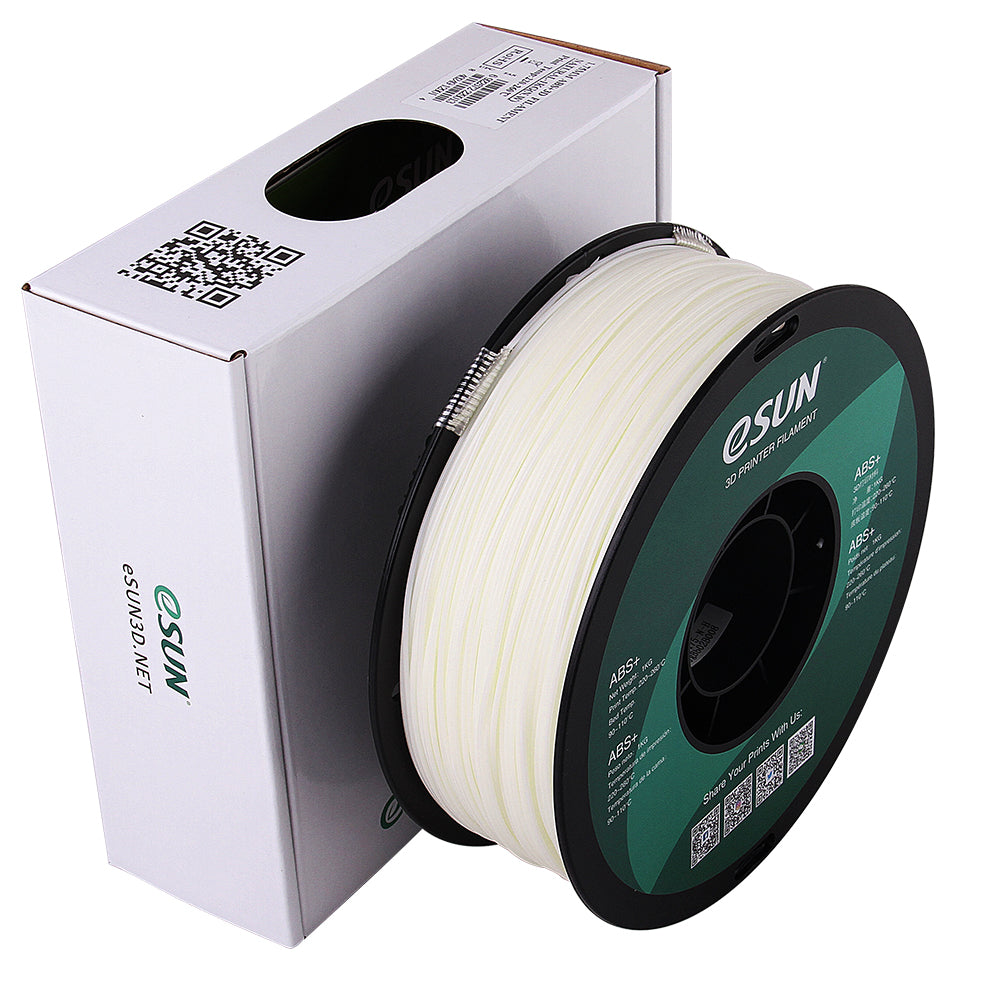

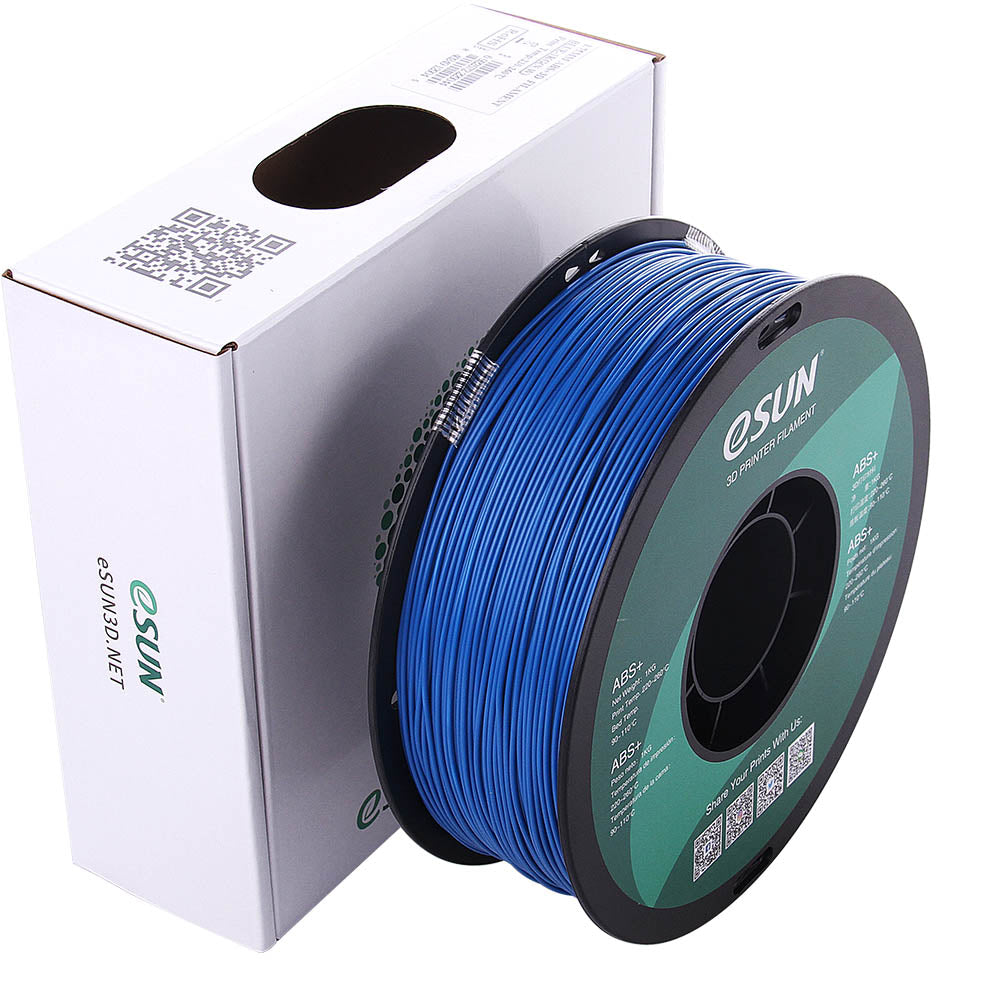

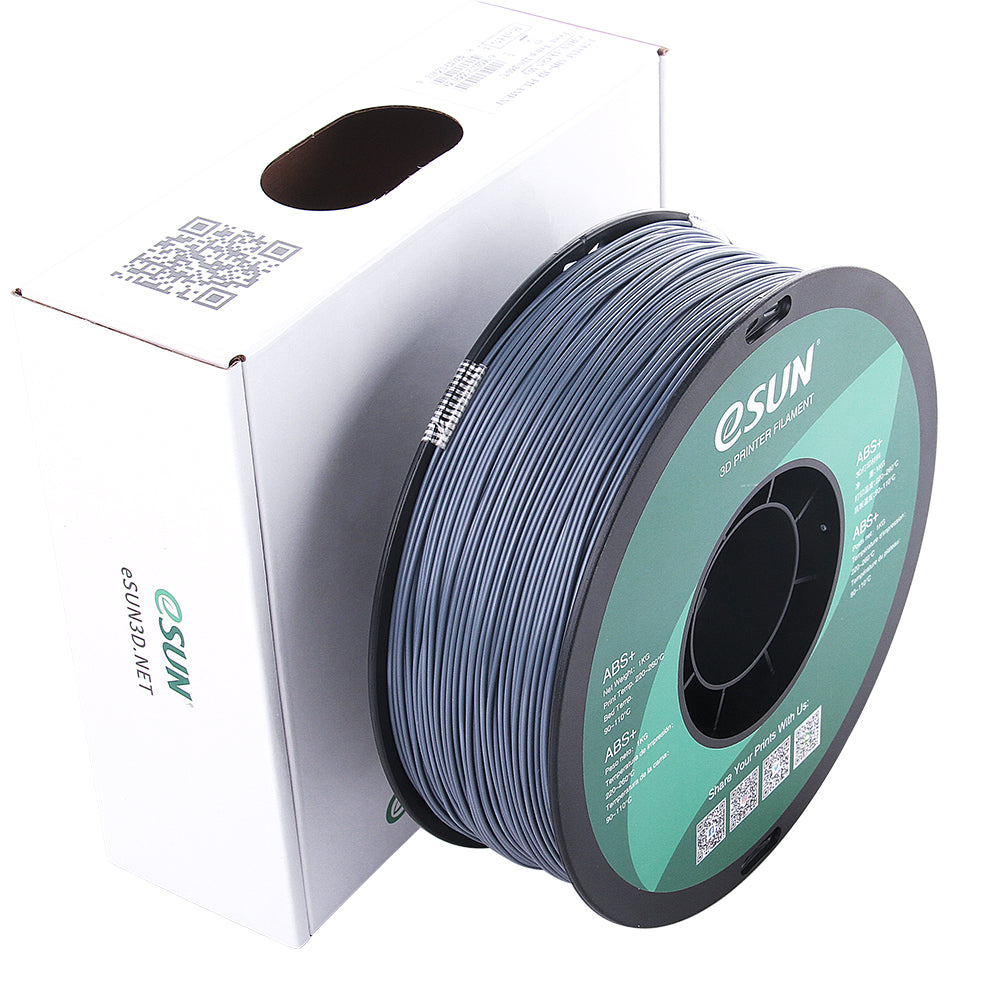

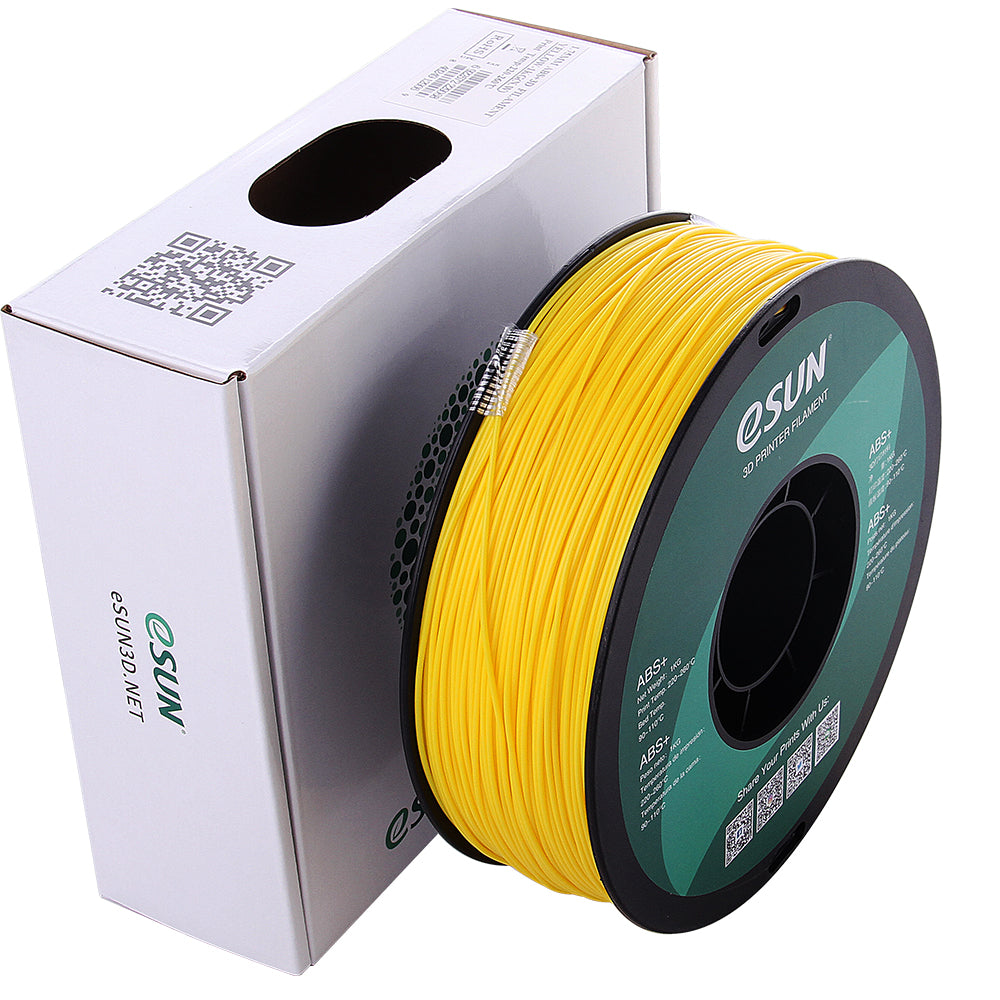

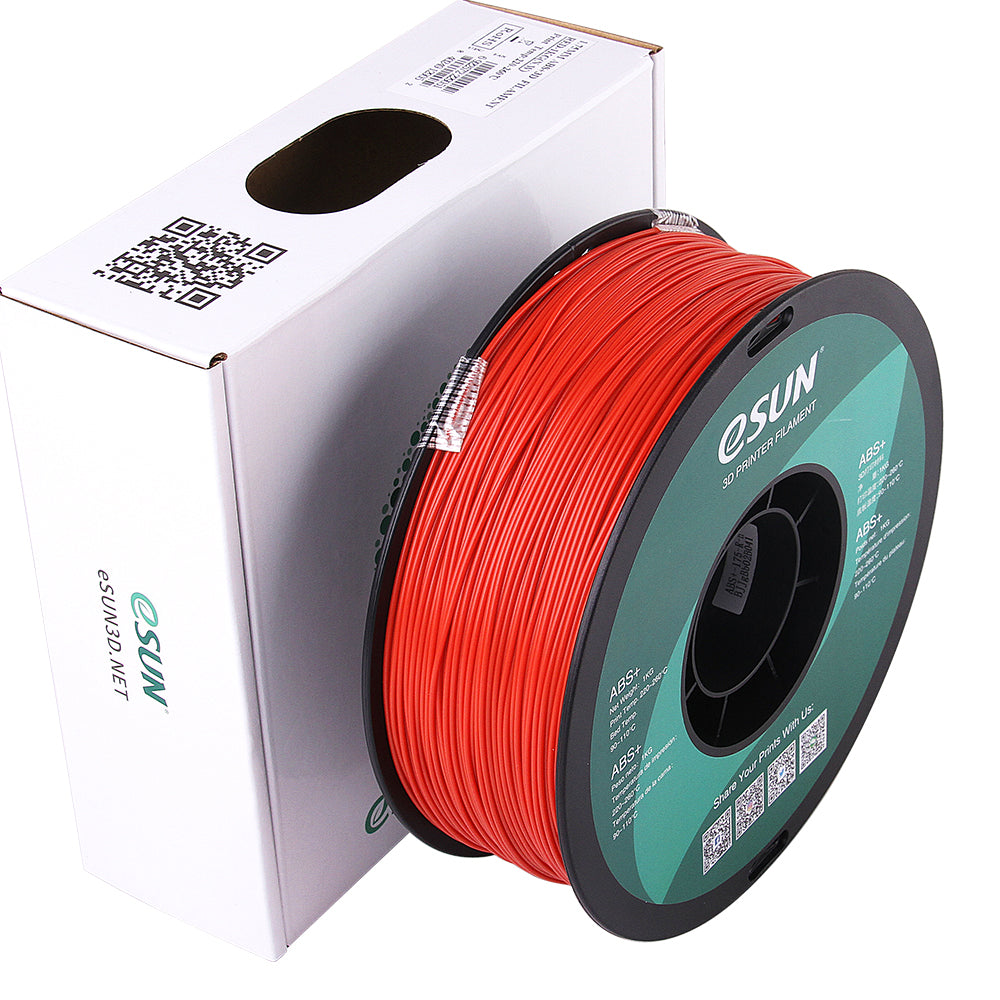

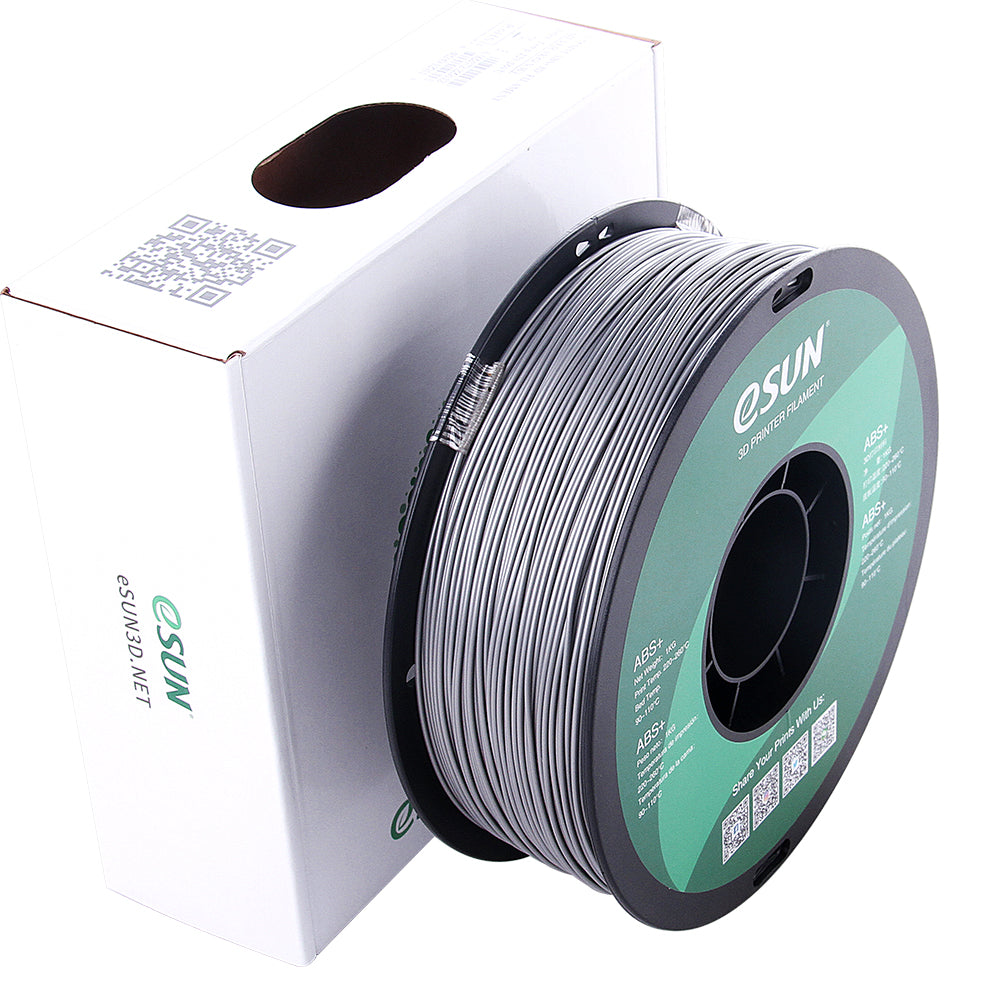

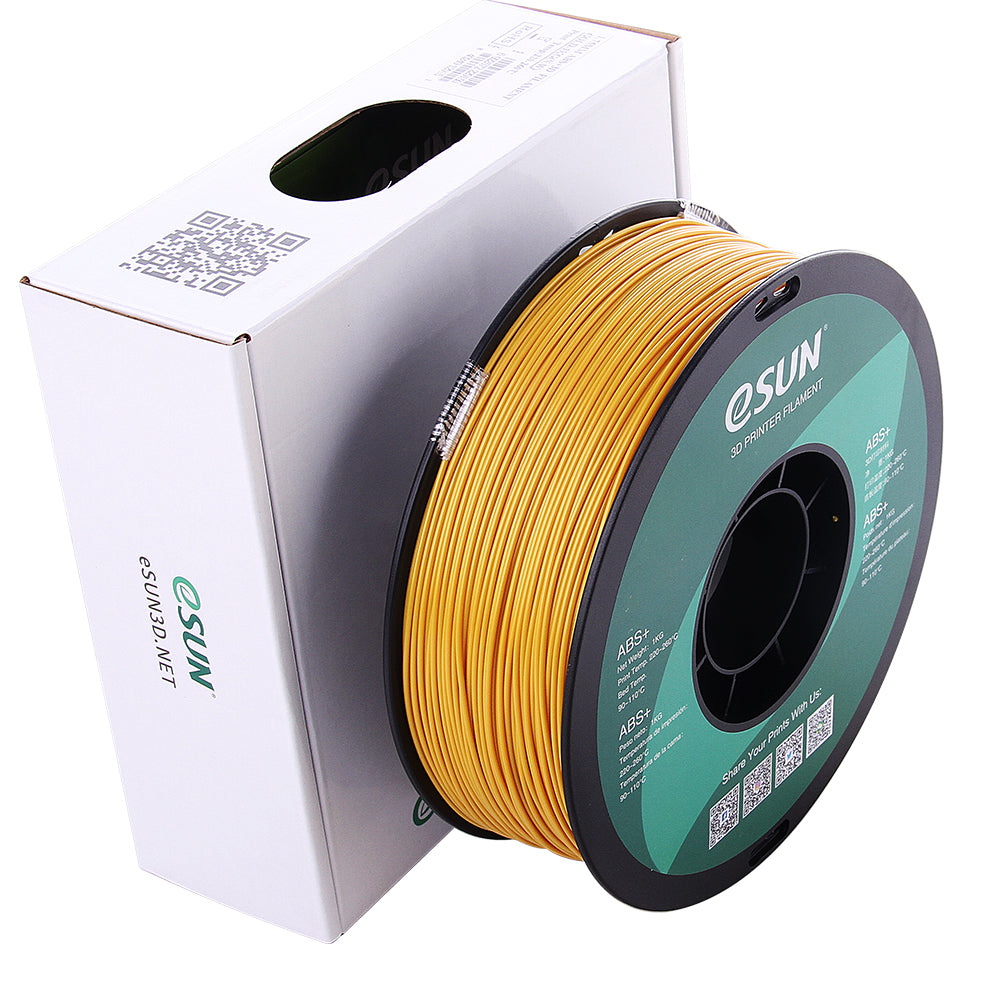

eSun ABS+
eSun ABS+
ABS+ material has high mechanical properties with less odor and less shrinkage than conventional ABS materials. ABS+ is used to print robust and durable parts.
-Robust and durable
-High impact resistance
-Low shrinkage
2 in stock
Couldn't load pickup availability
Share
The modification based on ABS material with higher mechanical properties, lower odor and lower shrinkage than conventional ABS materials. With high toughness and high impact resistance, ABS+ can be used to print robust and durable parts
Example Application areas
Parameter Information
| Filament Properties Table | |
| 3D PRINTING FILAMENT | ABS+ |
| Density (g/cm3) | 1.06 |
| Heat Distortion Temperature (℃, 0.45 MPa) | 73 |
| Melt Flow Index (g/10 min) | 15(220℃/10kg) |
| Tensile strength (MPa) | 40 |
| Elongation at break (%) | 30 |
| Flexural Strength (Mpa) | 68 |
| Flexural Modulus (MPa) | 1203 |
| IZOD Impact strength (kJ/㎡) | 42 |
| Abrasion resistance | 8/10 |
| Printing | 8/10 |
| Recommended print parameters | |
| Extruder temperature (℃) | 230 – 270℃ Recommended temperature: 240℃ |
| Bed temperature (℃) | 95 – 110°C |
| Fan speed | 0% |
| Print speed | 40 – 100mm/s |
| Heated bed | Necessary |
| Recommended building surfaces | Heat resistant tape, PVP solid glue, Printer's included mat |
| Functions | |
| Flexible | —— |
| Elastic | —— |
| Shock resistant | √ |
| Soft | —— |
| Composite | —— |
| UV resistant | —— |
| Water resistant | —— |
| Dissoluble | —— |
| Heat resistant | √ |
| Chemically resistant | —— |
| Fatigue resistant | —— |
| Needs drying | —— |
| Heated bed required | √ |
| Printing recommendation | Print in a closed chamber, minimize the angle of the overhang structure on the model |
Notes
- The shrinkage for ABS+ material is large, so you should pay attention to heat preservation when printing and print in a closed chamber printer.
- The cooling of ABS+ is slightly worse. You can put on a cooling fan to improve the printing effect, reduce the overhang structure in the model or try to reduce the printing speed.
Storage
How to store the filament:
1. If you are going to leave your printer inactive for more than a couple of days, please retract the filament to protect the printer nozzle.
2. To extend the life of your filaments, put the release filament back into the original vacuum bag and store it in a cool, dry place after printing.
3. When storing your filament, please feed the loose end through the holes on the edge of the filament roll to avoid winding, so that it will feed properly the next time you use it.
