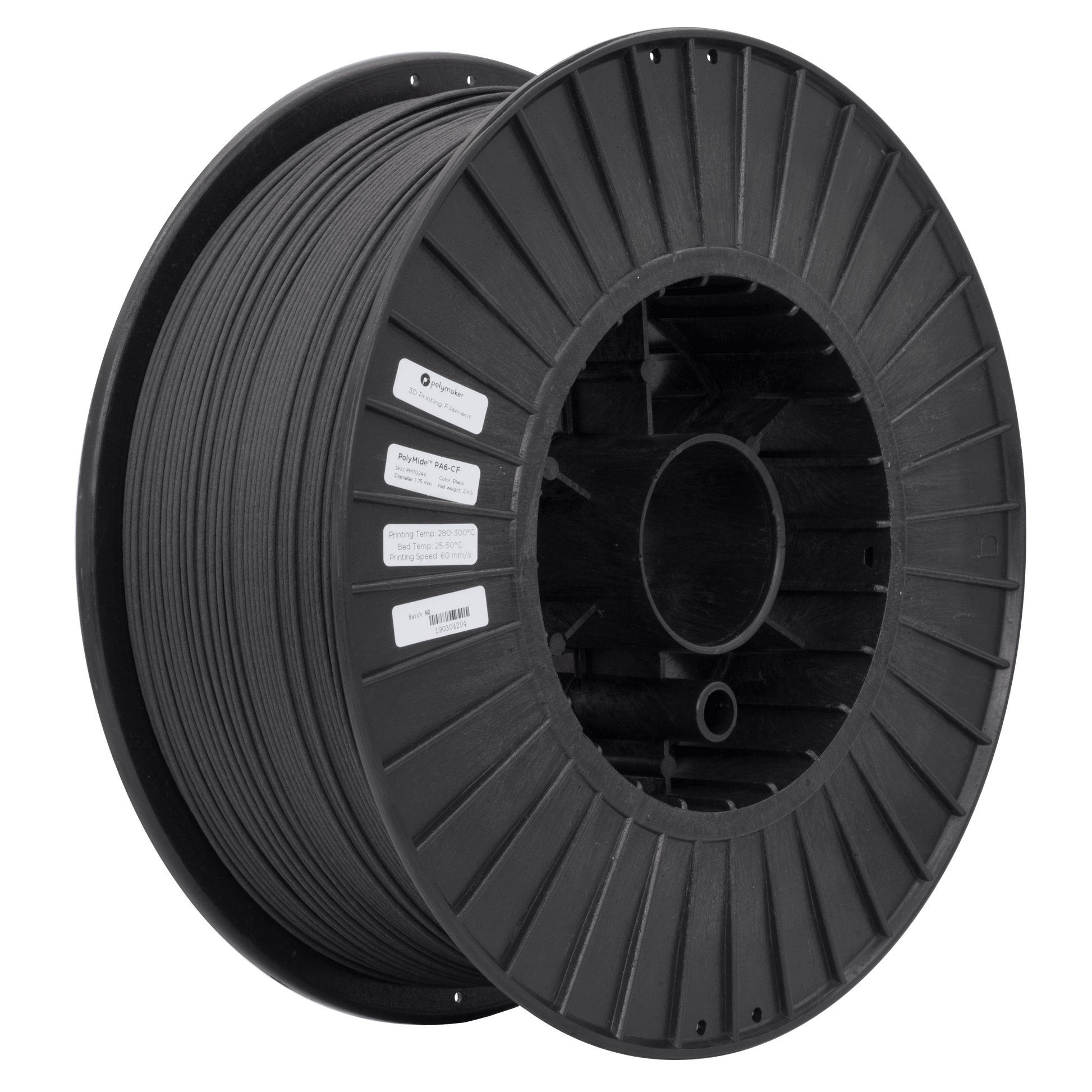

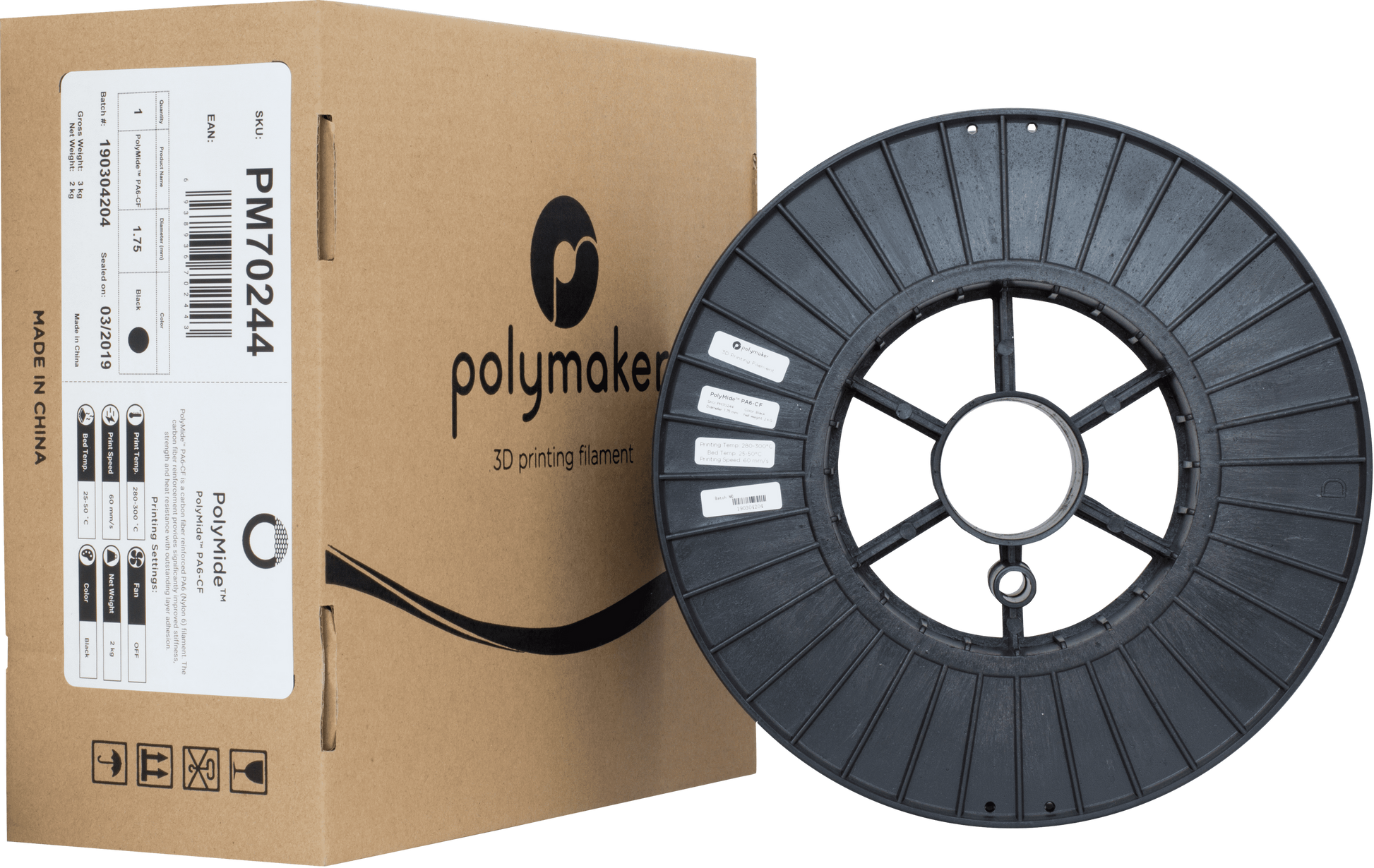

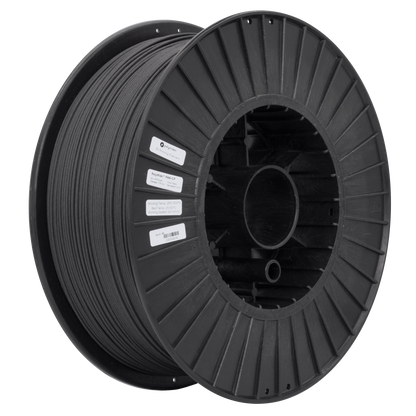

Polymaker PolyMide PA6-CF
Polymaker PolyMide PA6-CF
PolyMide PA6-CF is a carbon fiber reinforced PA6 (Nylon6) filament. The carbon fiber reinforcement provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion.
- Excellent thermal properties
- High mechanical resistance
- Good adhesion of layers
Couldn't load pickup availability
Share
PolyMide
PolyMide is a family of nylon/polyamide based filaments. Produced using Polymaker's Warp-Free technology, PolyMide filaments provide the technical properties inherent in nylon and are easy to print.
PA6-CF
PolyMide™ PA6-CF is a carbon fiber reinforced PA6 (Nylon 6) filament. The carbon fiber reinforcement provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion.
Recommended settings
- Nozzle temperature: 280˚C - 300˚C *
- Print speed: 30mm/ - 60mm/s
- Bed temperature: 25 ˚C - 50 ˚C (DO NOT exceed 50 ˚C).
- Bed surface: Almost any surface with a thin layer of PVA glue or Magigoo PA.
- Cooling fan: OFF
- We strongly recommend using a durable nozzle
Technical Specifications
|
Basic Information |
|
|
Filament type |
PA |
|
Diameter |
2.85mm |
|
Weight |
2.0 kg |
|
Length |
268 m |
|
Paint |
Black |
|
|
|
|
Printing parameters |
|
|
Recommended minimum printing temperature |
280ºC |
|
Recommended maximum printing temperature |
300ºC |
|
Recommended min. bed temperature |
25ºC |
|
Recommended maximum bed temperature |
50ºC |
|
Recommendation My print speed |
30 mm/s |
|
Recommendation Max print speed |
60 mm/s |
|
Recommendation Min Fan Speed |
0% |
|
Recommendation Max fan speed |
0% |
|
Recommended Indentation Min |
3mm |
|
Generally |
|
|
Specific gravity |
1.17 g/cm3 ISO 1183 |
|
Temperature |
|
|
Heat deflection temperature |
173 °C ISO 75 |
|
Traction |
|
|
Tensile strength |
105 MPa ISO 527 |
|
Tensile modulus |
7453 MPa ISO 527 |
|
Bendability |
|
|
Bending strength |
169 MPa ISO 178 |
|
Flexural modulus |
8339 MPa ISO 178 |
|
Other |
|
|
Impact strength |
13.34 KJ/m2 ISO 179 |
