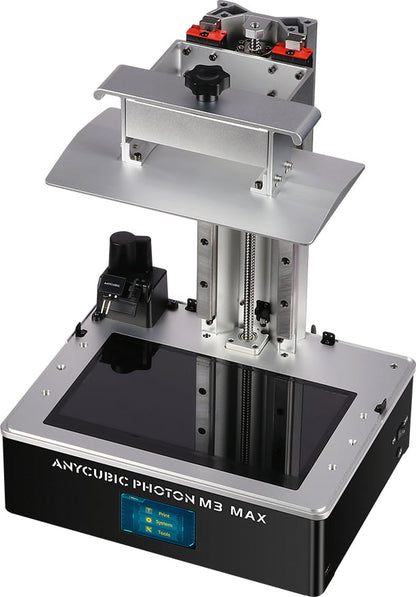

Anycubic Photon M3 Max
13" 7K monochrome screen
Greater volume, greater freedom.
Anycubic Auto Resin Filler
Smart resin filling, stop-free printing.
Ball screw with high precision
Make a detailed printing experience.
Large building size
298*164*300mm.
Unleash your imagination
Equipped with the industry's first 13.6-inch large screen with a build size of 298*164*300 mm, you unleash your creativity and a whole new world of screens.
Well-defined details
7K resolution and high-precision ball screw Z-axis rail with high precision allows you to get a detailed printing experience.
Smart resin filling
New features live! Anycubic Auto Resin Filler helps with intelligent filling of resin and intelligent stopping after enough. Hands-free resin filling. Rest without worries!
The key is the foundation
Repeated designs and testing of laser engraved platforms can significantly increase platform adhesion and improve print rates.
Speed up your experience
Anycubic LightTurbo light source system with LEDs in matrix matrix provides a powerful light source that enables fast printing.
Sharp details every time
Contrast ratio up to 450:1, 125% higher than other resin printers (200:1), enhances details.
Save more valuable time
The fastest printing speed can reach 60mm/h, and it only takes 2 hours to print the 12cm high miniature, which is 1 hour less than the 3 hours of printing that other resin printers take.
Protect what's important
Add a dedicated and replaceable screen protector to protect the premium 13.6'' 7K screen and feel relieved.
Fully compatible slicer
Anycubic Photon Workshop is fully compatible with all Anycubic resin printers. It is also perfect for setting some parameters, and also saves the large amount of money spent on third-party slicing software, free and professional.
Technical specifications
| Technical specifications
|
|
| Technique for resin printing |
UV LCD |
| UV wavelength for resin |
405 nm |
| Type of UV light for resin |
Matrix UV light source |
| Resin Type of display |
Monochrome LCD |
| Resin Display resolution X |
6480 pixels |
| Resin Display resolution Y |
3600 pixels |
| Resolution for resin display |
46 µm |
| Recommended print speed |
60.12 mm/h |
| Print area |
300mm x 298mm x 164mm |
|
|
| Installation space/requirements
|
|
| Total mass |
596mm x 400mm x 408mm |
| Total weight |
21 kg |
| Maximum power consumption |
120W |
| Voltage |
AC: V |
|
|
| Equipment
|
|
| Touch screen |
Yes |
|
|
| Connection
|
|
| USB port |
Yes |
|
|
| Accuracy
|
|
| Stock height |
0.01 - 0.1 mm |
|
|
| Delivery |
|
|
