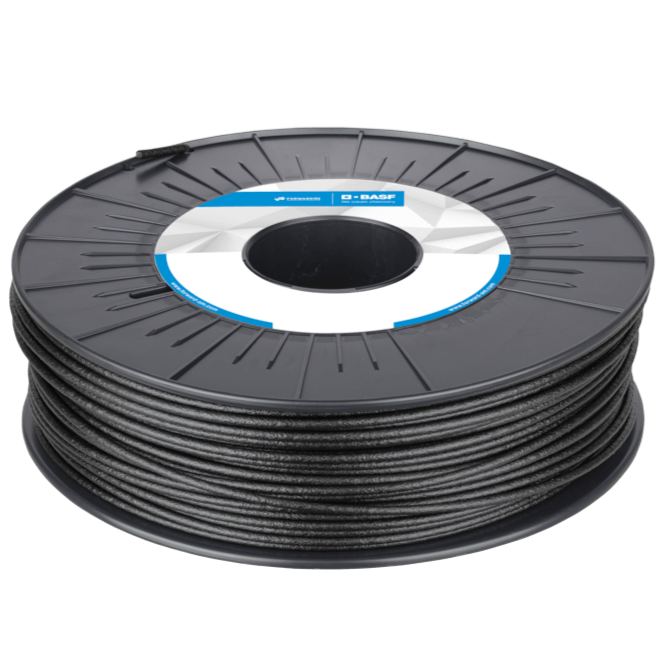

BASF Ultrafuse PET CF15

Ultrafuse PET CF15

Ultrafuse PET CF15 is a technical filament optimized to enable users to develop new 3D printing applications with higher requirements. With its superior heat resistance, high strength and stiffness, this is a filament for a wide range of demanding industrial applications. Its high dimensional stability and very low moisture absorption make it a perfect solution for applications in humid operating environments.

Tips and tricks

• Printing temperature: 245-265 °C
• Print speed: 40-80mm/s
• Temperature of the glass bed: 70-80 °C
• Layer height: 0.2mm
• Extrusion width: 0.6mm
• Infill density: 20%.
• Fan speed: 0%
• Thickness above/below: 1.0-1.2 mm

BASF quality control

The best available raw materials are selected from known suppliers. Production on state-of-the-art computer-controlled machines guarantees a truly even thread, even between different colors and lots. It will work as expected every time.

All BASF products are 100% traceable to the source.

Technical Specifications

Material properties

• Tensile strength (MPa): (ZX), 63.2 (XY)
• Flexural modulus (MPa): 2253 (ZX), 6293 (XZ), 5452 (XY)
• Elongation at break: 0.5% (ZX), 3.7% (XY)
• Impact strength Izod impact (kJ/m2): 2.0 (XZ), 5.0 (XZ) 5.7 (XY)
• Impact strength Izod unopened (kJ/m2): 2.4 (ZX), 22.6 (XZ), 25.1 (XY)
• HDT at 0.45 MPa: 108 oC
