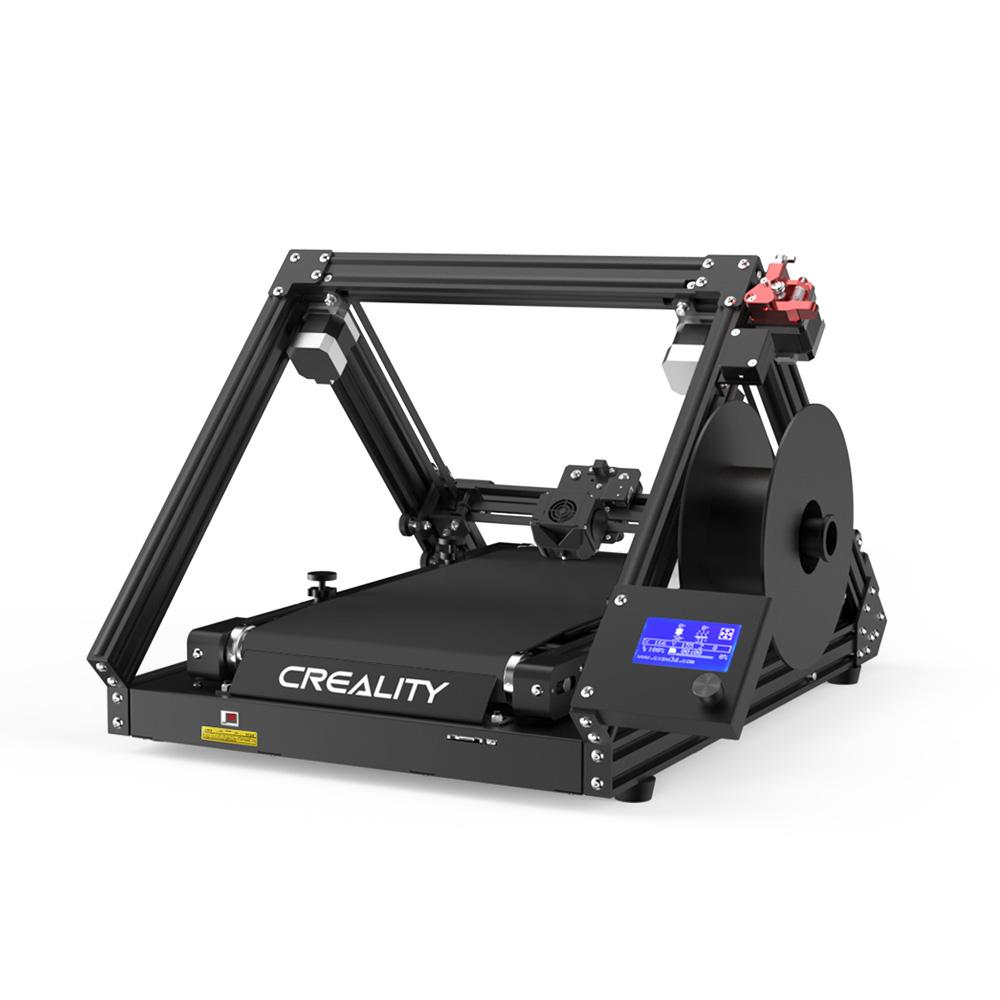

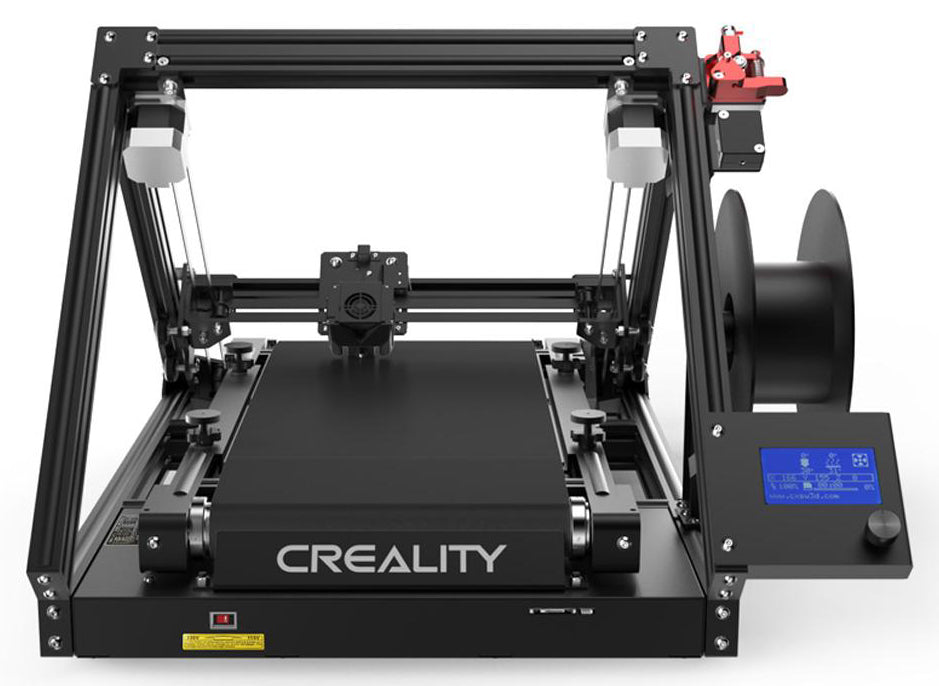

3D PRINT MILL (CR-30) 3D PRINTER

The CR-30 from Creality is a new innovative printer that, in theory, can print objects of any length (limited in software to 99 meters). It's really only software and space that can limit this printer. Of course, this means a completely new approach to how a printer can be used. For production purposes, this means a big time saving and you no longer have to monitor the printer constantly. The printer is ideally suited for mass production of small parts. Load the printer with the model you want and then you can just leave it to work. The parts fall apart as they are completed. For cos-play or prop-makers, this is revolutionary news. Print a sword, whether it's 30 cm or 3 meters doesn't matter.

Functions

• Infinite-Z building volume
• Stable Core-XY structure
• Broadband power supply
• Exclusive disc software
• 45° angled hotend
• Nylon conveyor belt
• Filament break detector
• Ultra-quiet motherboard

Infinite-Z axis for infinite printing

It is equipped with a rolling conveyor belt and enables continuous printing. You don't have to worry about printing the model with infinite length. High productivity, time-saving and cost-effective (printing dimension: 200*170*∞mm).

Stable CoreXY structure

The stable and robust CoreXY precision structure with the support of a right triangle gives you an extraordinary printing experience.

Nylon conveyor belt

The conveyor belt is made of durable nylon and has an excellent adhesion to the model. The printed model can fall off automatically when the tape rolls to the end, freeing your hand Strong adhesion| Hassle free removal | Durable| Well-balanced transport *Easy to replace the conveyor belt

Preset build plate

On the CR-30, the build plate is set directly at the factory. This means that you can start using the printer as soon as it is unpacked and connected to power.

45° working angle

Thanks to the fact that the print head works at a 45° angle, you get a very high print quality. The surface of the printed parts will be very smooth and it is difficult to see or feel the bearing lines. Facilitates a lot in cases where you want to post-process a print as you can usually go straight to painting it.

Printing temperature

With a maximum printing temperature of 240°C, the printer can handle most standard filaments such as PLA, TPU, PETG, Wood, Metal (mixed with PLA)

Heated building surface

The build plate can be heated to a maximum of 100°C, which means that even materials such as PETG will be stable during printing.

Durable surface

A durable nylon material has been chosen as the printing surface. This is easily replaceable if worn and also provides a perfect surface for prints to adhere to.

Quiet running

Thanks to the new motherboard used in the CR-30, you can enjoy a very low sound volume.

Material sensor

Should the accident occur and the material breaks, the printer senses this and puts the printer into pause mode. After loading new filament, the printer resumes printing at the same point where it was interrupted.

Finish what you started

In the event of a power failure, the printer remembers its last position and can resume printing when power is restored.

Information pictures

Technical specifications

Usable nozzles Typ	MK8
Usable wire diameter	1.75 mm
Temperature in the nozzle Max	240 ºC
Open filament system	Yes
Extruder Type	Bowden
Print area	∞ mm x 200 mm x 170 mm
Building plate temperature max.	100 ºC
The material of the building plate	Nylon conveyor belt
Bracket for building plate	belt
System for setting the building plate	Manual smoothing
The construction chamber during the process	Open
Extruder Quantity	1
Installation space/requirements
Total mass	535mm x 656mm x 410mm
Total weight	16.5 kg
Maximum power consumption	350W
Voltage	AC: 100 V / 240 V
	DC: 24V
Equipment
Hepa filter	No
Filament Sensor - End	Yes
Fail safe in case of power failure	Yes
Touch screen	No
Connection
SD card	Yes
USB port	Yes
Wi-Fi	No
Accuracy
Stock height	0.1 - 0.4 mm
Resolution	0.1 mm
Delivery
Delivery box	685mm x 565mm x 302mm
Transport weight	20.5 kg
