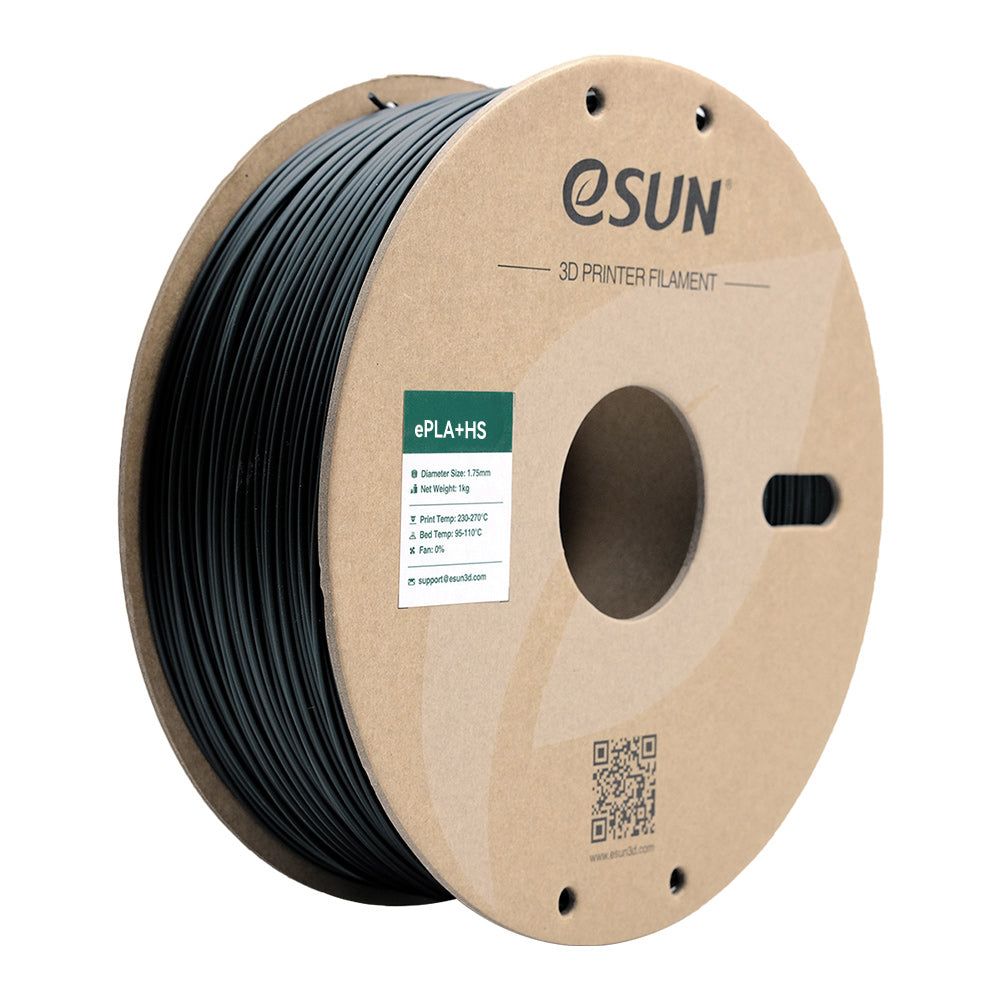

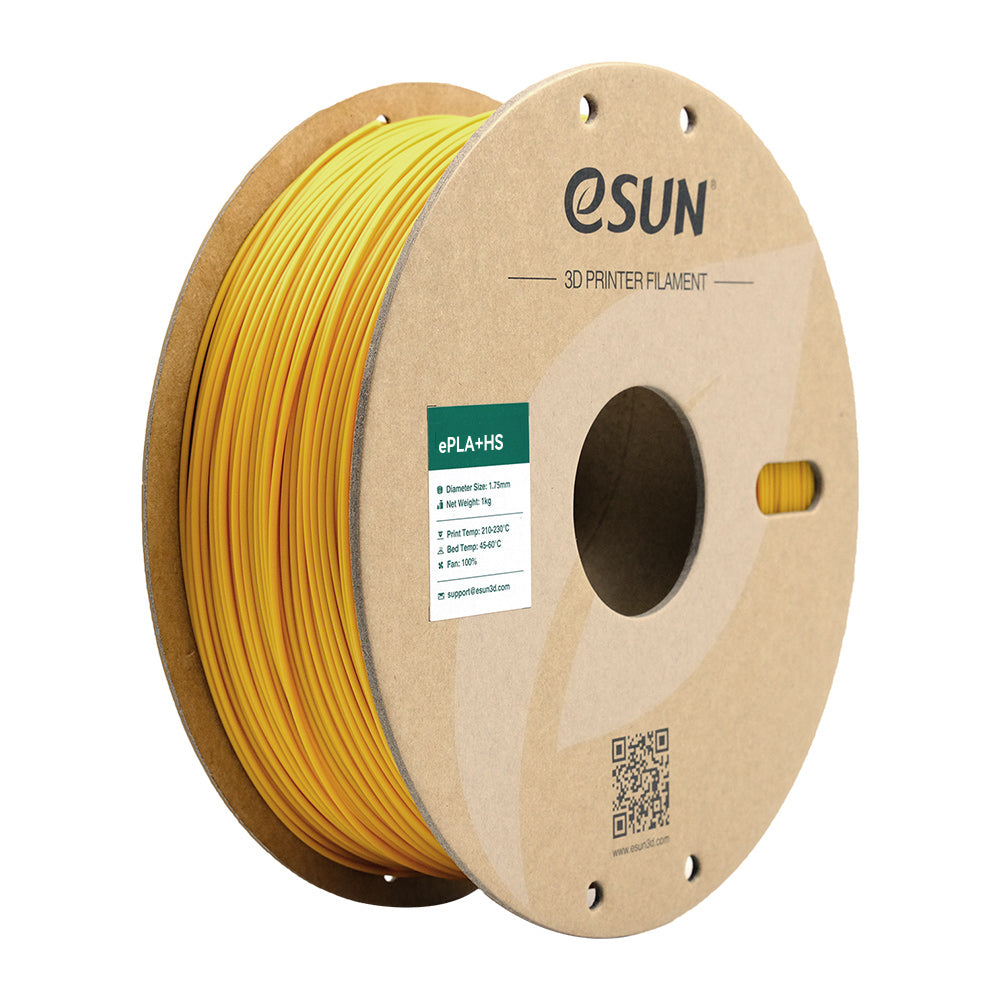

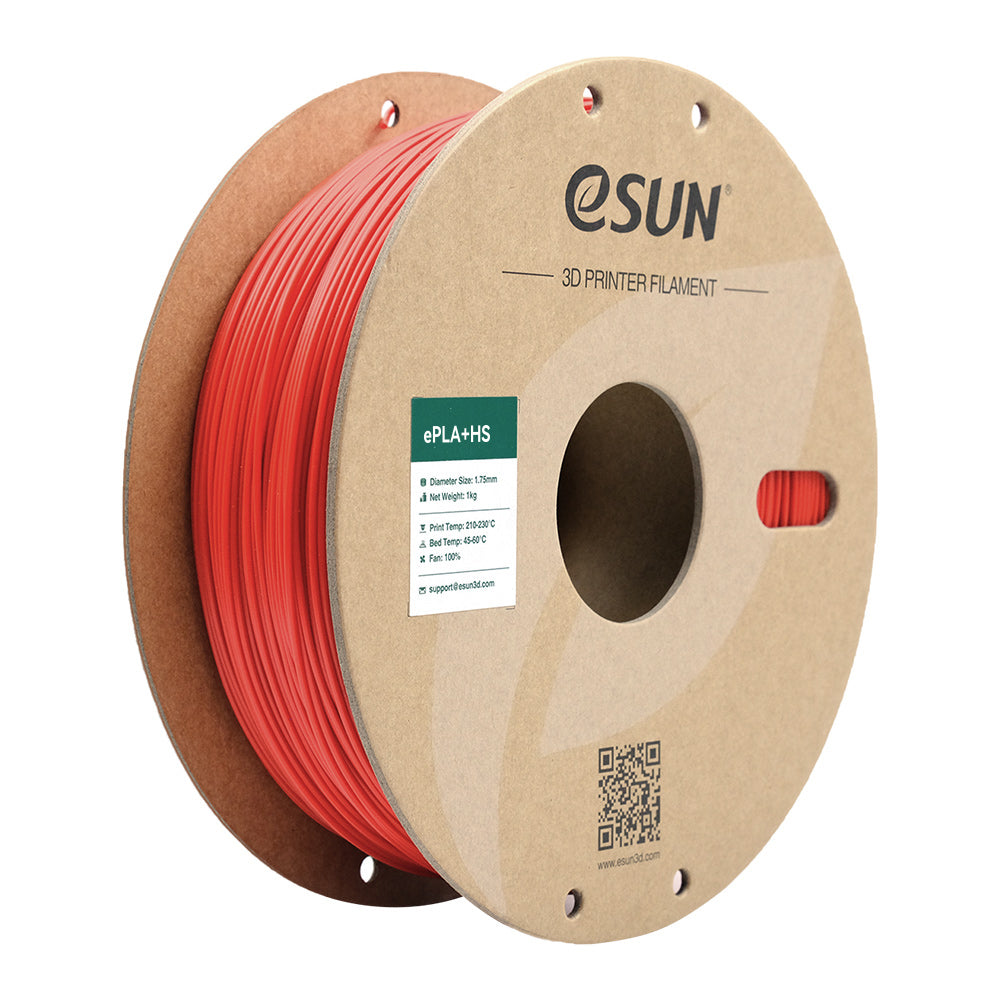

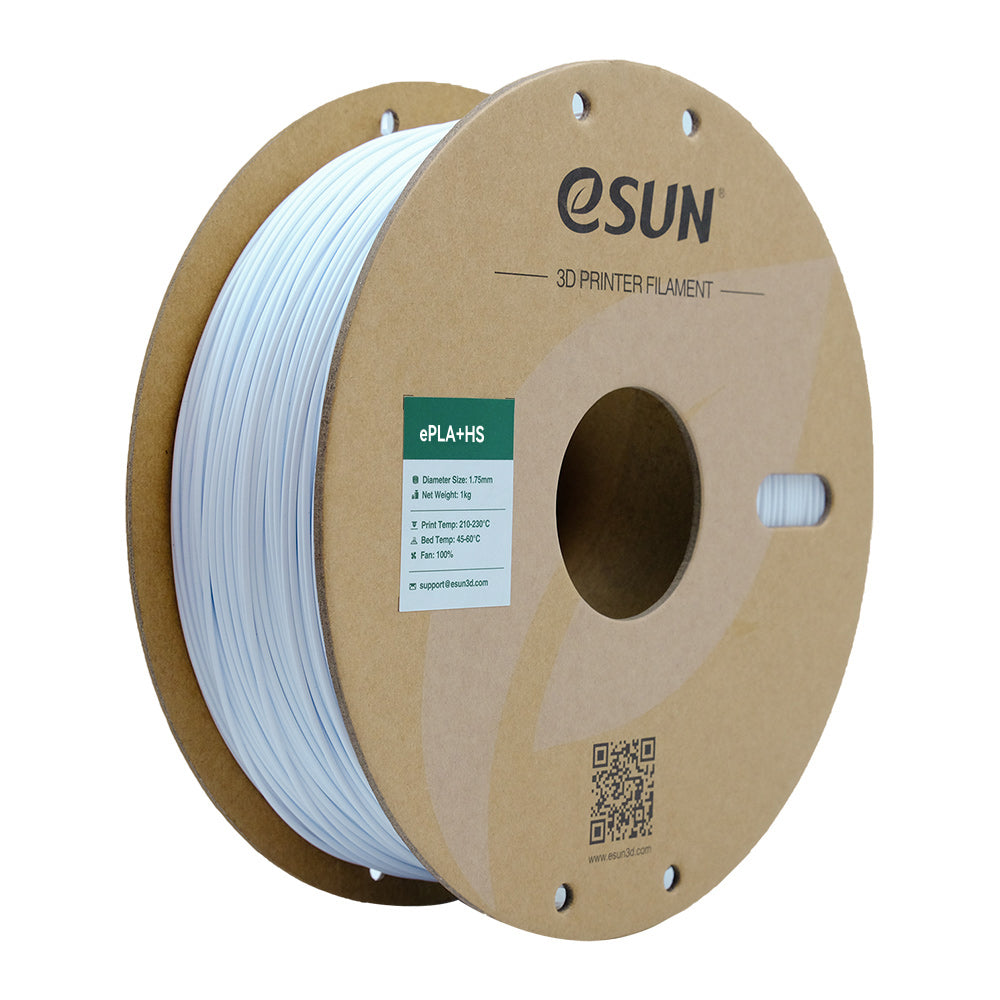

eSun ePLA HS (High Speed)
eSun ePLA HS (High Speed)
Fast printing requires materials that can melt and cool quickly. However, in order to balance the speed of melting and cooling of the material, the physical properties of materials printed with fast techniques are usually slightly degraded. In order to offer 3D printed products with superior mechanical performance under fast print conditions, eSUN has conducted many tests of various rapid formulations. The result was ePLA+HS, which is specially designed to match high-speed printing and provides improved toughness.
- High toughness
- High speed prints
- High precision
5 in stock
Couldn't load pickup availability
Share
eSun ePLA + High speed
Fast printing requires materials that can melt and cool quickly. However, in order to balance the speed of melting and cooling of the material, the physical properties of materials printed with fast techniques are usually slightly degraded. In order to offer 3D printed products with superior mechanical performance under fast print conditions, esun has conducted many tests of various rapid formulations. The result was ePLA+HS, which is specially designed to match high-speed printing and provides improved toughness.
Maximum speed: 500 mm/s
Maximum volume flow: 30 mm³/s
Maximum acceleration: 20000mm/S2
Technical Specifications
|
Basic Information |
|
|
Filament type |
PLA |
|
Diameter |
1.75 mm |
|
Weight |
1.00 kg |
|
Length |
335 m |
|
|
|
|
Parameters for printing |
|
|
Recommended min print temperature |
210 ºC |
|
Recommended maximum pressure temperature |
230 ºC |
|
Recommended min. bed temperature |
45 ºC |
|
Recommended maximum bed temperature |
60 ºC |
|
Recommendation My print speed |
50 mm/s |
|
Recommendation Max print speed |
350 mm/s |
|
Recommendation Min fan speed |
100% |
|
Recommendation Max fan speed |
100% |
|
Generally |
|
|
Specific gravity |
1.24 g/cm3 GB/T 1033 |
|
Extension |
|
|
Extension in case of breach |
17.5% GB/T 1040 |
|
Bendability |
|
|
Bending strength |
78 MPa GB/T 9341 |
|
Flexural modulus |
2695 MPa GB/T 9341 |
|
Other |
|
|
Impact resistance |
4.1 KJ/m2 GB/T 1843 |
