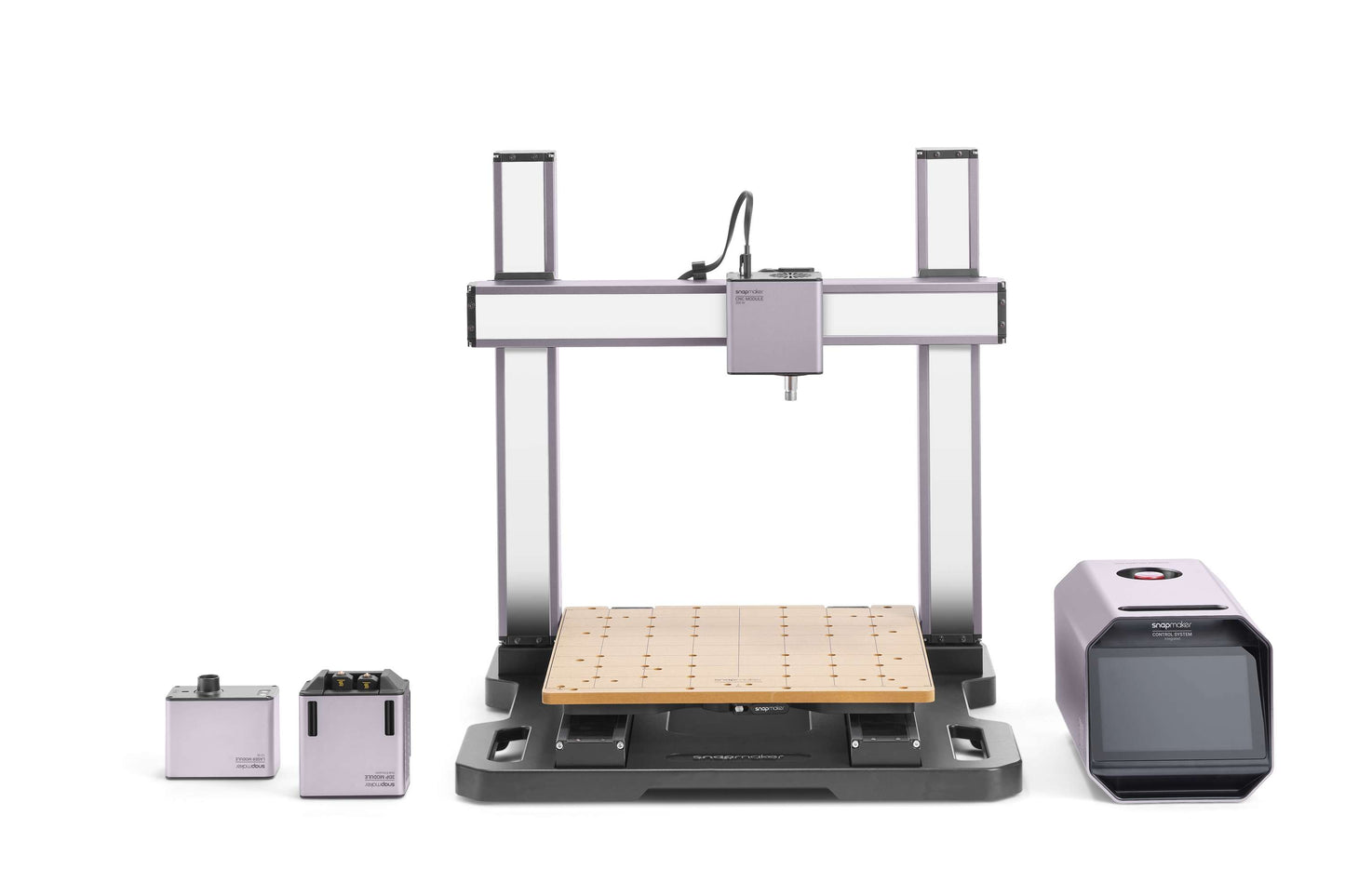

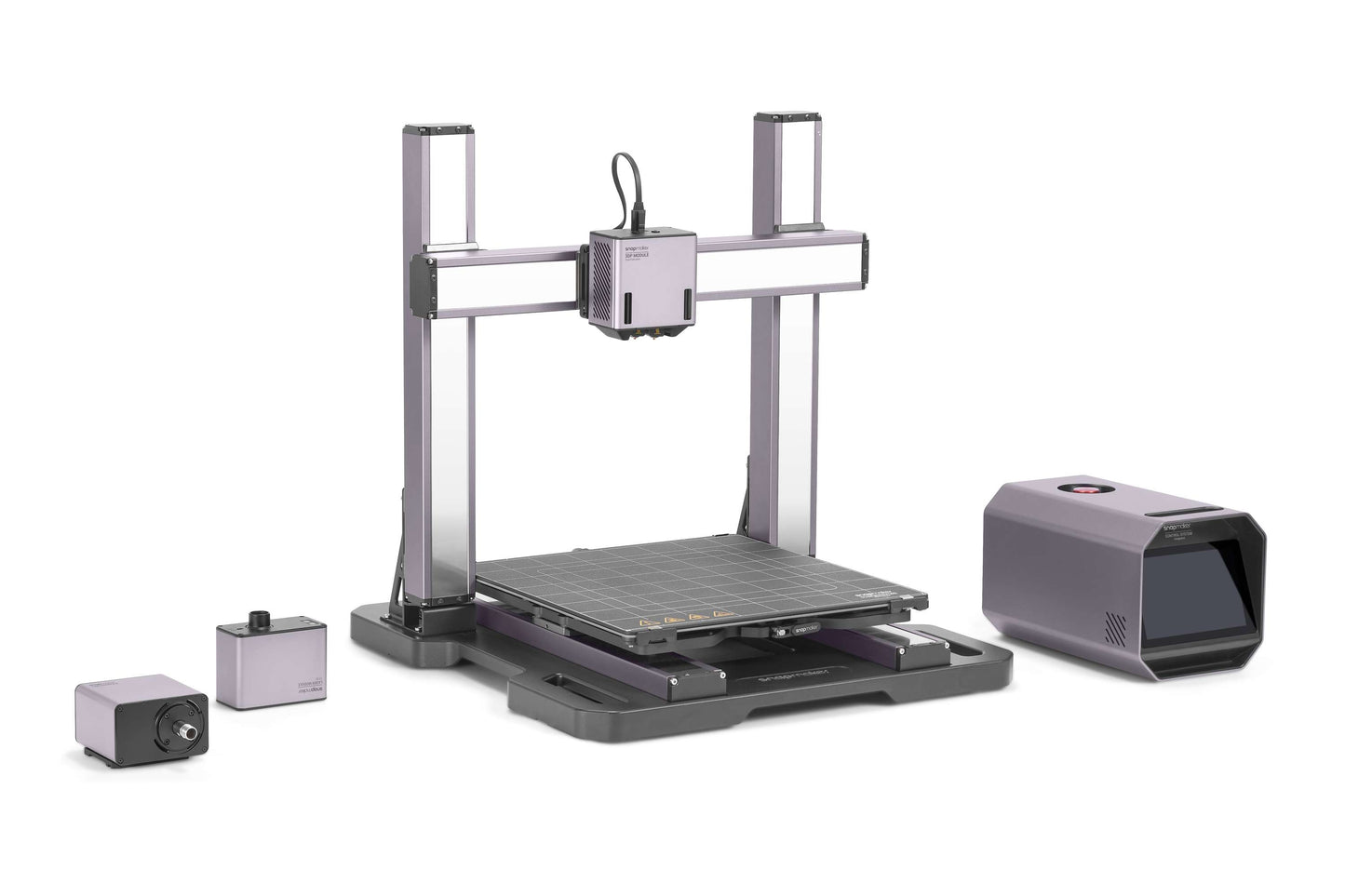

Snapmaker Artisan 3-IN-1 3D Printer

Artisan 3-in-1 3D printer

Compared to Snapmaker 2.0, Artisan is improved in terms of print speed, precision, filament compatibility and availability. High-quality 3D printing is now easier than ever.

Industrial grade transmission technology

We introduce industrial transfer technology to desktop manufacturing - steel guide rails manufactured with micron-level CNC grinding are embedded in Artisan's linear modules. This leads to a significant increase in precision, stiffness and durability, giving you a fast, accurate and stable manufacturing experience.

All Metal - The Next Level

The Artisan inherits Snapmaker's signature all-metal design, but also features an upgraded one-piece molded base plate in a larger size. It is as stable as a rock even during high-speed CNC machining.

Ultra-wide 7'' touch screen

The vision is broader. A smoother workflow. The user interface (UI) is more intuitive. And an ergonomically better adapted operation.

All-in-one CAM solution: Snapmaker Luban

The customized Snapmaker Luban software provides a concise and easy-to-understand workflow for 3D printing as well as laser and CNC machining. Excellent in 3 manufacturing methods with only 1 software. The latest Luban is built-in with more convenient print modes. You do not need to adjust the parameters. Stylish prints are just a few clicks away. You can access the underlying parameters and have full control over the machining process as always.

Faster and easier

Thanks to the optimized transmission system and motion control algorithm, the Artisan has a dimensional accuracy of ± 0.1 mm when printing at a high speed of 180 mm/s. It is not only the printing speed that is faster, but the change between tool heads and hotends is now both faster and easier. Quick change platforms and tool heads allow you to switch between the three functions, printing, laser cutting and CNC cutting in less than a minute. In addition, Luban recognizes the size and type of nozzles and offers you custom configurations, so you can easily manufacture your prototypes, high-strength parts, or whatever is needed for your projects. The Dual Extrusion 3D Printing Module also has a built-in motor to automatically lift and switch between two extruders, without additional tool head movement or gear shifting. This enables faster and quieter dual extrusion 3D printing.

Dissolvable and interruptible support printing

The Artisan is equipped with a dual-extrusion 3D printing module that supports PVA, HIPS and other dissolvable materials. Simply soak the print to dissolve the supports and leave the model with a smooth surface finish. Complex geometry is no longer a problem. Interruptible filament provides the same support as regular materials but is much easier to remove without the need for additional post-processing.

Save time and effort with zone heated bed and easy calibration

In the center of the Artisan heated bed is a 260 x 260 mm high temperature zone (also called the inner zone) which can reach 110 °C, while the highest temperature in the outer zone is 80 °C. While your model is placed in the inner zone, which heats up to 60 °C in just 2-3 minutes, the outer zone is not heated, saving time and energy. The Artisan can automatically level the heated bed and calibrate the Z offset of the two extruders, then calibrate the XY offset using a semi-automatic program. In three steps, you can enjoy double-material printing or two-color printing with perfect adhesion and alignment.

Not only about strength, but also about finesse

The laser module has a high power of 10 W and an ultra-fine laser focus (0.05 mm × 0.2 mm) using laser beam splitters and beam shaping optics. This enables high-quality laser work with impeccable detail.

Show what you stand for and let us take care of the rest

We strive to improve machine performance while streamlining workflow, so you can focus on bringing your ideas to life and nothing else. It's powerful yet simple.

the triangulation technology calculates the thickness of the material and completes autofocus in seconds.

The wide-angle camera captures your material in a single shot and allows you to get an instant preview of your laser job in Luban.

More powerful CNC cutting and cutting

Equipped with a 200W CNC module, Artisan further improves CNC performance, while retaining the ER11 collet, custom clamps and dustproof design that are highly appreciated by users, bringing you a new desktop CNC experience.

6X faster CNC machining

Compared to Snapmaker 2.0, the CNC module in Artisan has increased by 300% in power and 50% in maximum speed, which makes it 6 times faster when processing wood such as beech.

0.2 mm Dimensional accuracy

The high-rigidity linear modules and high-speed spindle enable the CNC module to carve or cut smoothly in various materials, with a dimensional accuracy of up to 0.2mm.

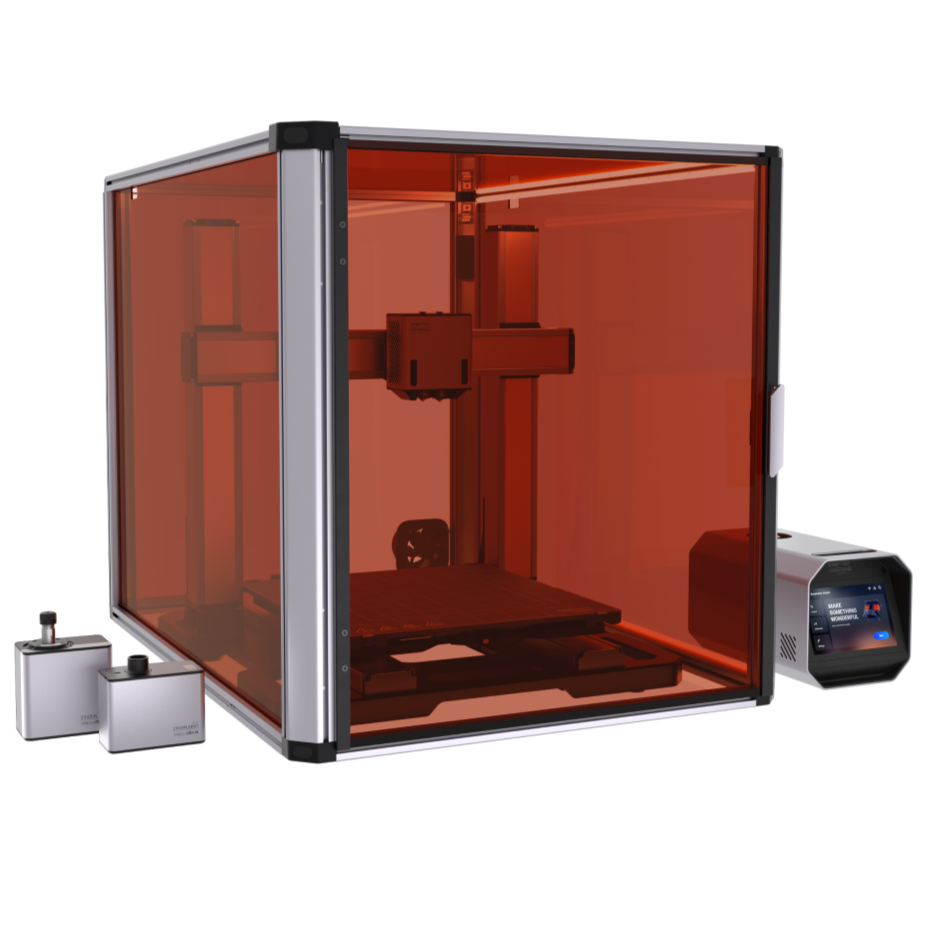

Your safety is in good hands

The capsule's door detector allows the Artisan to automatically stop the laser or CNC job when any door is opened. The laser module contains a gyro sensor that ensures that no laser beam comes out if the module deviates from its intended position. We also embed an emergency stop button in the control unit. In addition, the process paused by the button can be resumed. The laser module automatically stops working when its temperature sensor detects a higher than normal operating temperature (a temperature exceeding 55 °C/131 °F).

Technical Specifications

Construction and technical details
Temperature in the nozzle Max	300 ºC
Open filament system	Yes
Extruder Type	Bowden Bondtech with dual drive wheels
Print area	350mm x 400mm x 400mm
Double building surfaces	400mm x 400mm x 400mm
Building plate temperature max.	100 ºC
The surface of the building plate	PEI
The material of the building plate	Glass
System for setting the building plate	automatic
The construction chamber during the process	Open or closed
Extruder Quantity	2
Installation space/requirements
Total mass	580mm x 620mm x 634mm
Total weight	52.9 kg
Maximum power consumption	200W
Voltage	AC: V
Equipment
Emergency shutdown	Yes
Door sensor	Yes
Touch screen	Yes
Camera	Yes
Connection
USB port	Yes, 1 x USB-A
Wi-Fi	Yes
Accuracy
Stock height	0.12 - 0.24 mm
