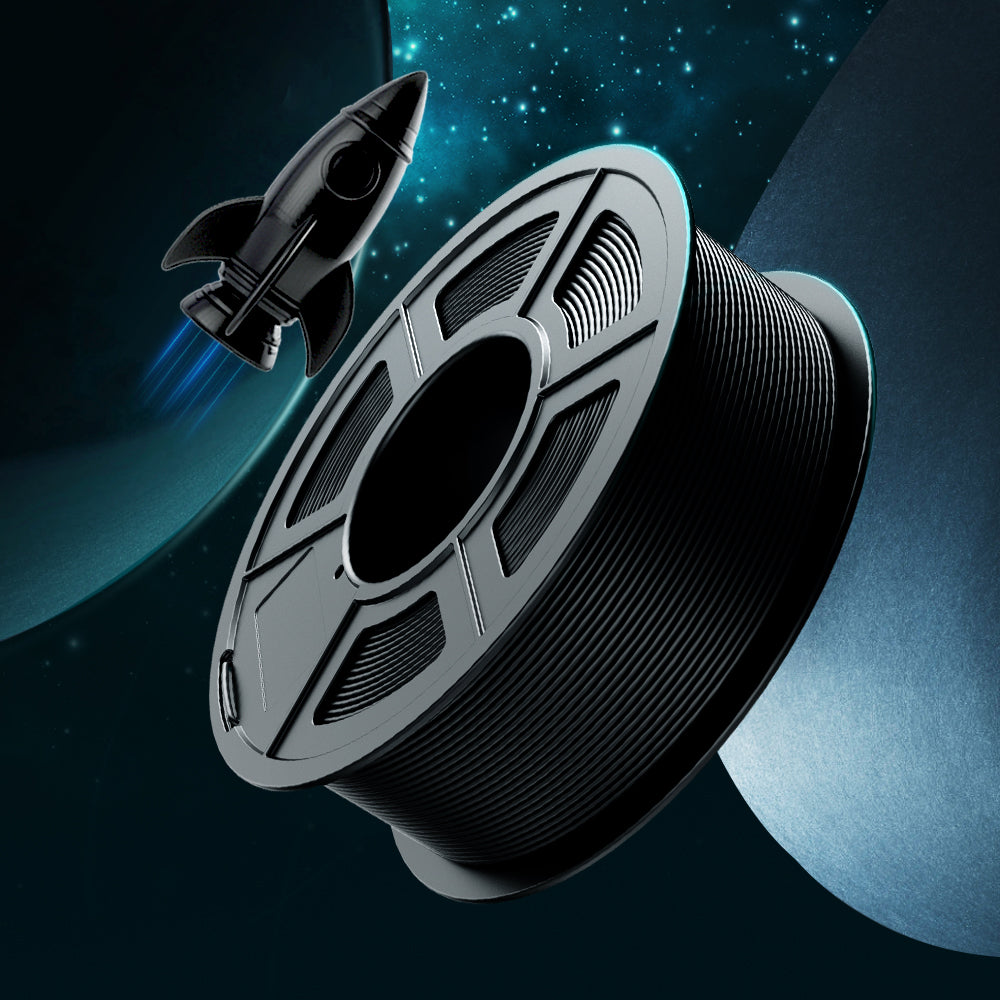

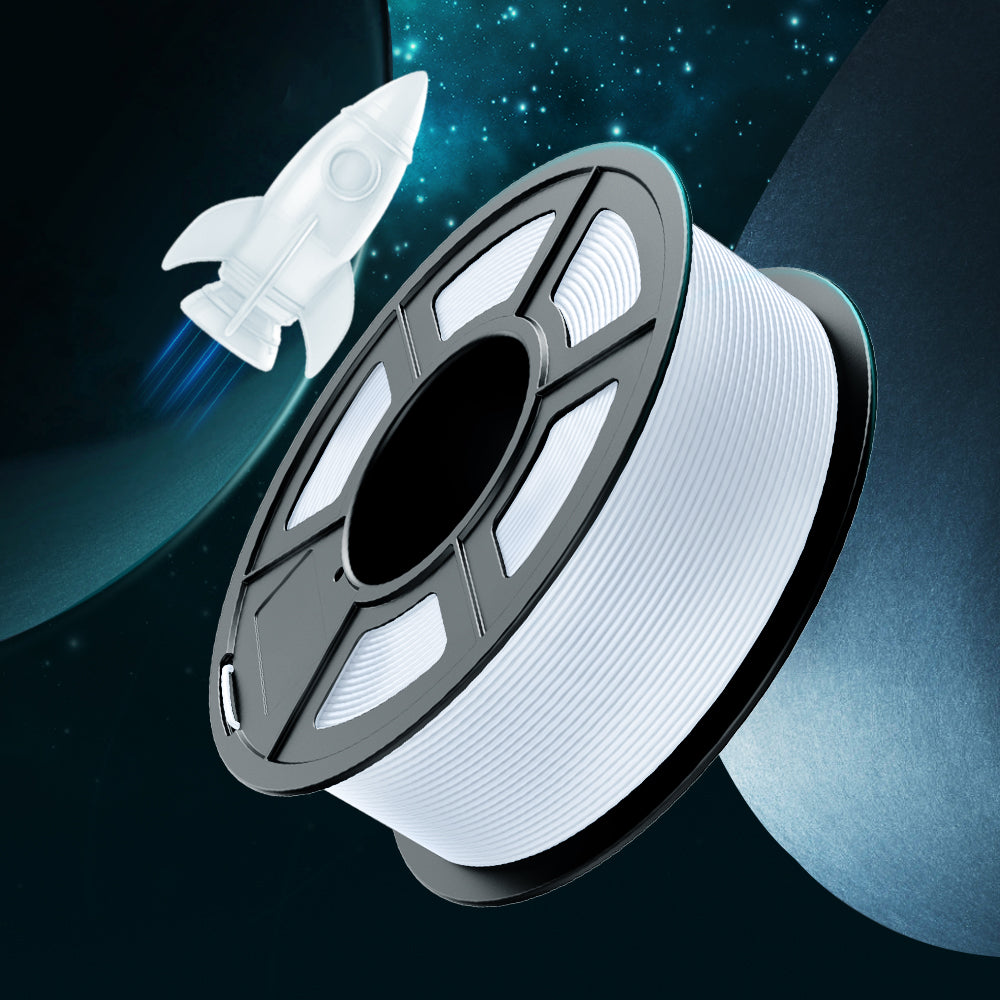

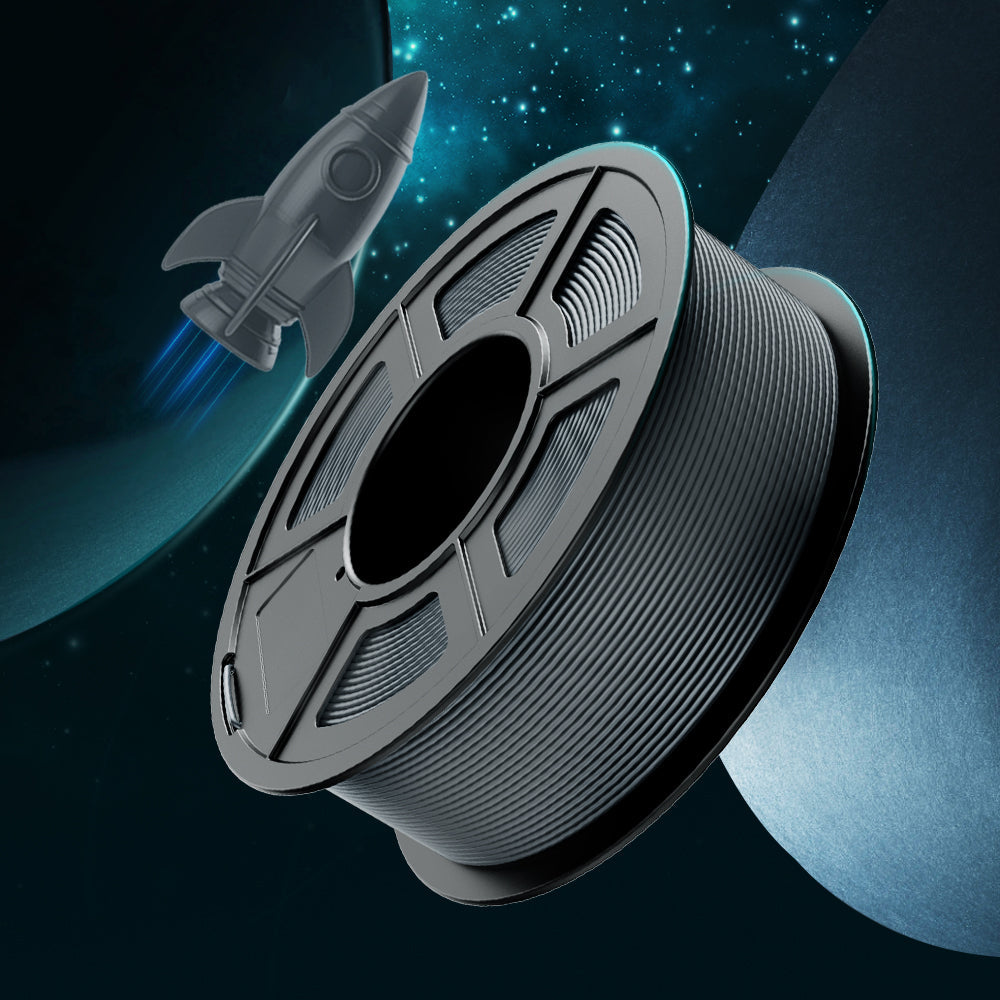

Sunlu high speed PLA filament
SUNLU's High Speed PLA is a PLA material specially designed for high speed printing. Compared to standard PLA, this High Speed PLA can achieve a 300% higher speed of up to 600 mm/s. The fluidity of the material has also increased by an incredible 500% to ensure smooth extrusion and prevent possible nozzle clogging.
More time and energy saving
Print quality at 0-100mm/s is superior to regular PLA, providing smoother surfaces and better overhang. With overhang angles of less than 70° that do not require support, this filament significantly reduces print time and material waste. It enables fast printing at a low temperature of 180-195℃, saving both time and energy.
500% improved buoyancy
No clogging even at high-speed prints of ≥250mm/s, ensuring smooth material flow.
Improved heat dissipation
The heat dissipation capacity of High Speed PLA has increased by 180%, providing faster cooling under the same conditions and enabling fast printing without material build-up.
High crystallization temperature
High Speed PLA has a fast cure rate, which improves fast printing and draping performance. Excellent air cooling of the printer can eliminate the need for support for drape angles less than 70°.
Low shrinkage rate
The filament has low shrinkage, which reduces the risk of cracks during fast printing and produces smooth surfaces.
Nicely oriented
High Speed PLA has a uniform wire diameter and enables fast, knot-free printing, resulting in smooth and smooth material output.
Technical Specifications
Basic Information
|
|
Filament type
|
PLA
|
Diameter
|
1.75 mm
|
Weight
|
1.00 kg
|
Length
|
330 m
|
Paint
|
White
|
|
|
Parameters for printing
|
|
Recommended min print temperature
|
205 ºC
|
Recommended maximum pressure temperature
|
215 ºC
|
Recommended min. bed temperature
|
50 ºC
|
Recommended maximum bed temperature
|
60 ºC
|
Recommendation My print speed
|
0 mm/s
|
Recommendation Max print speed
|
250 mm/s
|
Recommendation Max fan speed
|
100%
|
Recommended indentation Max
|
5 mm
|
|
|
Generally
|
|
Specific gravity
|
1.26 g/cm3 ASTM D792
|
Shrinkage in shape
|
0.2 ASTM D955
|
Specific volume resistivity
|
2.90E+15 ASTM D257
|
|
|
Temperature
|
|
Vicat softening temp.
|
54 °C ASTM D1525
|
Heat deflection temperature
|
57.3 °C ASTM D648
|
|
|
Traction force
|
|
Tensile strength
|
54.1 MPa ASTM D638
|
Traction module
|
3282 MPa ASTM D638
|
|
|
Extension
|
|
Extension in case of breach
|
13.9% ASTM D638
|
|
|
Bendability
|
|
Bending strength
|
75.2 MPa ASTM D790
|
Flexural modulus
|
2357 MPa ASTM D790
|
|
|
Other
|
|
Impact resistance
|
5.9 KJ/m2 ISO 180
|
